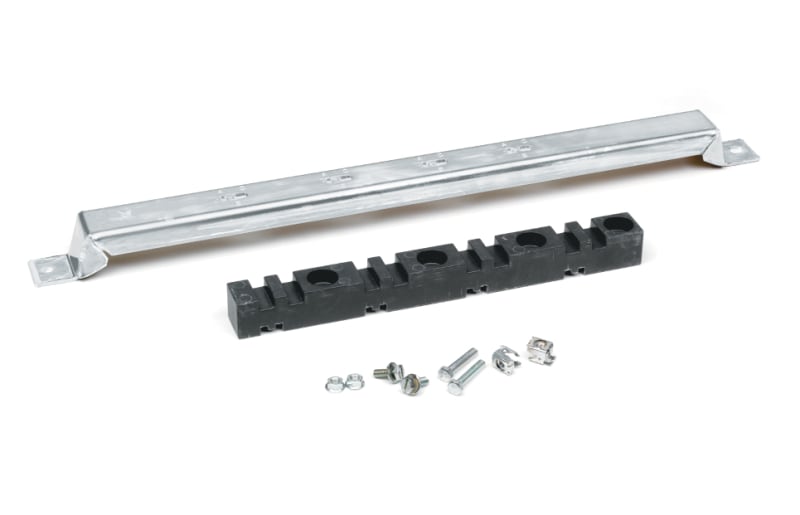

Lower Rail Bracket 800 115mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYAS800L Lower rail bracket - for 800mm vidde - 115mm skinneavstand.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAS800L
- EAN / GTIN
- 3606480211478
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Support accessory
- Product or component type
- Bar support
- Anwendung
- Multi-purpose; Prisma application
- Enclosure nominal dimensions
- -
- Mounting location
- Bottom
- Busbar position
- Vertical
- Range compatibility
- Linergy Linergy LGYE; Linergy Linergy BS; Prisma Prisma POLAR WHITE
- Cubicle-device connection
- Linergy LGYE lateral busbar; Linergy BS lateral busbar
- Device composition
- fixing elements; 1 insulating bar support; 1 metal support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element - bottom frame of enclosure location
- Height
- 66 mm
- Width
- Fixing centers: 750 mm; Nominal: 800 mm
- Depth
- 39 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 78.500 cm
- Package 1 Weight
- 2.188 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 16
- Package 2 Height
- 40.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 32.000 kg
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 115 mm
- Max. rated current
- 3200 A
- Country of origin
- India
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480211478
- SAP 1200496775
- Code 82641079
