FRONTPL.NSX100-250 Vigi Vert.Drei./Motor
Part numberLVS03244EAN / GTIN3606481872241HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

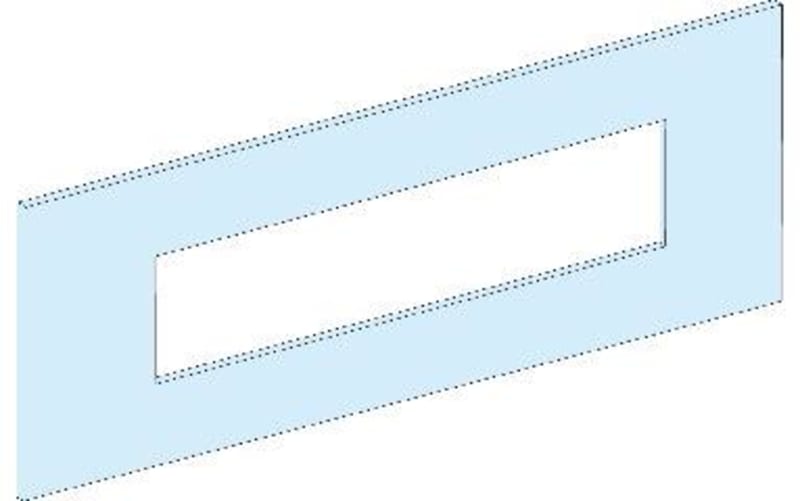

Schneider Electric LVS03244 Front plate for NSX100/250 with Vigi/motorrotary handle-Vertical-PrismaSeT G/P-7 modules-600/650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03244
- EAN / GTIN
- 3606481872241
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- EasyPact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX250 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX250 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism - vertical installation
- Poles description
- 4 x 3P: mounting plate support: CVS100...160 vertical installation; 3 x 4P: mounting plate support: CVS100...160 vertical installation; 4 x 3P: mounting plate support: CVS250 vertical installation; 3 x 4P: mounting plate support: CVS250 vertical installation; 4 x 3P: mounting plate support: NSX100...160 vertical installation; 3 x 4P: mounting plate support: NSX100...160 vertical installation; 4 x 3P: mounting plate support: NSX250 vertical installation; 3 x 4P: mounting plate support: NSX250 vertical installation; 2 x 3P: mounting plate support: NSX100...160 vertical installation; 2 x 4P: mounting plate support: NSX100...160 vertical installation; 2 x 3P: mounting plate support: NSX250 vertical installation; 2 x 4P: mounting plate support: NSX250 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection; Linergy FC
- Number of vertical modules [50 mm]
- 7
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 350 mm
- Product weight
- 1.26 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed direct front rotary handle vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed direct front rotary handle vertical 4P 3 direct 11; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed direct front rotary handle vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed direct front rotary handle vertical 4P 3 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle vertical 3P 4 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism vertical 3P 4 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle vertical 4P 3 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism vertical 4P 3 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle vertical 3P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle vertical 4P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle vertical 3P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle vertical 4P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism vertical 3P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism vertical 4P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle vertical 3P 4 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism vertical 3P 4 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle vertical 4P 3 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism vertical 4P 3 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 3P 4 Linergy FC 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 3P 4 Linergy FC 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 4P 3 Linergy FC 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 4P 3 Linergy FC 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 3P 4 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 3P 4 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 4P 3 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 4P 3 Linergy FC 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 4P 3 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 3P 4 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 4P 3 direct 11; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 10; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 with fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 13; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 13; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 with fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 13
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 40
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 7
- Surface finishing
- Powder coating
- Country of origin
- France
