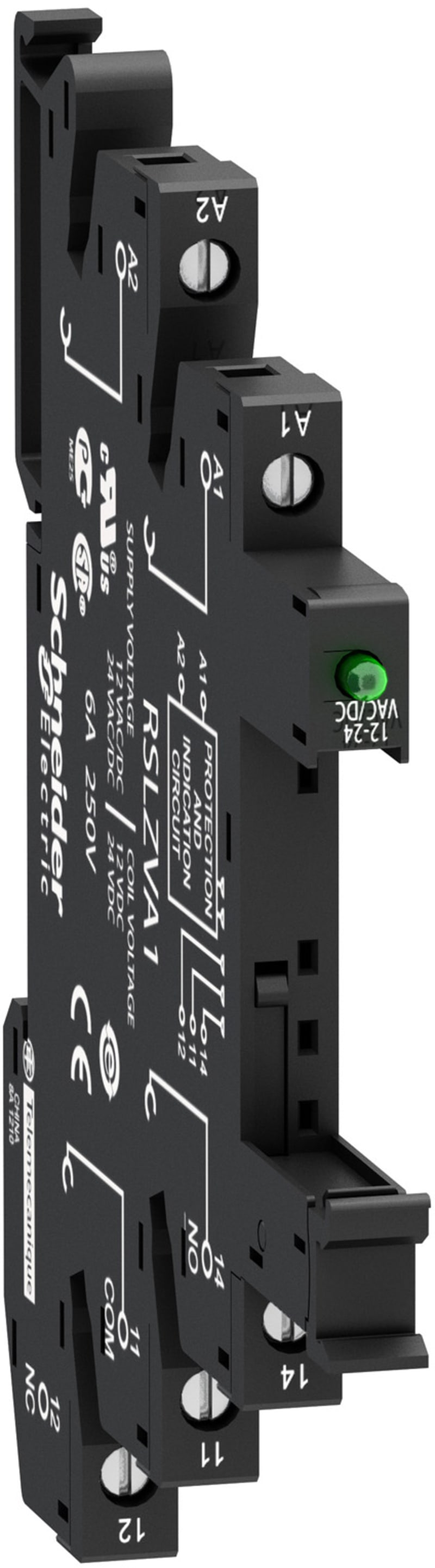

Schneider Electric screw socket equipped with LED and protection circuit, 230 V RSLZVA4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric RSLZVA4 Zelio Slimrelé - Plinth 230VAC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- RSLZVA4
- EAN / GTIN
- 3606480078057
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230 V AC
- Range of product
- Harmony Electromechanical Relays
- Device short name
- RSLZ
- Product or component type
- Socket
- Device presentation
- Basic element
- Product compatibility
- Plug-in relay RSL with 1 C/O contact at 60 V DC; Plug-in relay RSL
- Contacts type and composition
- 1 C/O
- [Ith] conventional free air thermal current
- 6 A
- Switching voltage
- 230 V AC/DC
- Rated operational voltage limits
- 184...264.5 V
- [Ue] rated operational voltage
- < 300 V AC
- Group of product
- RSL_CON_230
- Shape of pin
- Flat
- Contact terminal arrangement
- Separate
- Connections - terminals
- Connector, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Connector, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) solid without cable end
- Compatibility code
- RSLZ
- Tightening torque
- < 0.4 N.m for M2.5 screw(s)
- Fixing mode
- Plastic compression spring (35 mm symmetrical DIN rail)
- [Uimp] rated impulse withstand voltage
- 3.6 kV
- Overvoltage category
- III
- Pollution degree
- 3
- Sale per indivisible quantity
- 10
- CAD overall width
- 6.2 mm
- CAD overall height
- 78.6 mm
- CAD overall depth
- 95 mm
- Product weight
- 0.023 kg
- IP degree of protection
- IP20 conforming to IEC 60529
- Standards
- IEC 61984; UL 508
- Product certifications
- GOST; CSA
- Marking
- CE
- Ambient air temperature for storage
- -40…85 °C
- Ambient air temperature for operation
- -40…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 300
- Country of origin
- CN
- Warranty (in months)
- 18
- Mounting method
- DIN rail (top hat rail) 35 mm
- Width
- 6.2 mm
- Height
- 78.6 mm
- Depth
- 95 mm
- With detachable clamps
- No
- Function extension possible
- No
- Type of electric connection
- Screw connection
- Number of pins
- 5
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480078057
- SAP 1000090690
- Code 8925627
