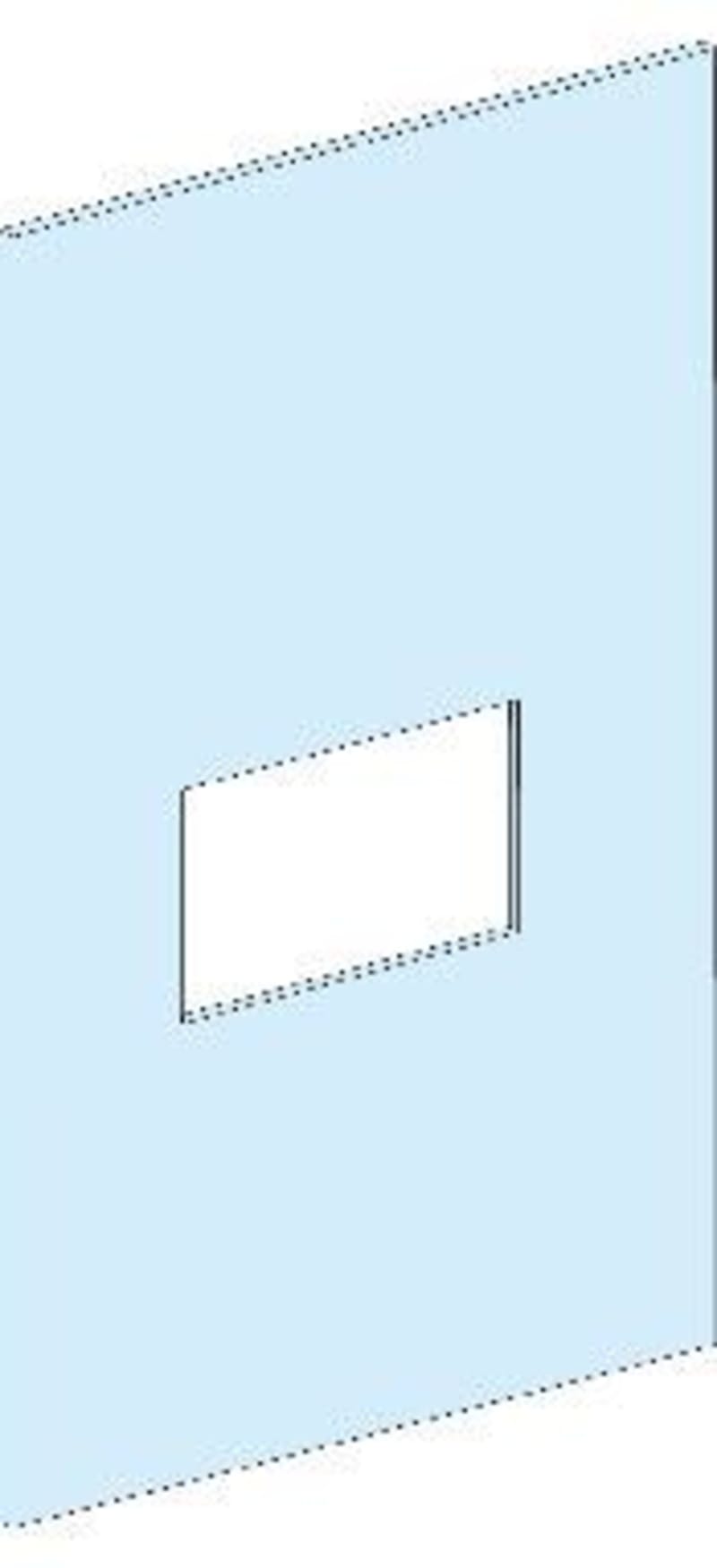

Front plate NSX250 Vigi vertical PrismaSeTG
Part numberLVS03293EAN / GTIN3606481873415HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03293 Front plate for NSX100/250 with Vigi-vertical mounting -cable compartment-11modules-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03293
- EAN / GTIN
- 3606481873415
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P cubicle; PrismaSeT PrismaSeT Pack 250 duct
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation
- Poles description
- 1 x 4P: mounting plate support: NSX100...160 vertical installation; 1 x 4P: mounting plate support: NSX250 vertical installation; 1 x 3P: mounting plate support: NSX100...160 vertical installation; 1 x 3P: mounting plate support: NSX250 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle duct - width 400 mm depth 400 mm; Pack enclosure - width 300 mm
- Connection position
- Front connection; Direct connection
- Number of vertical modules [50 mm]
- 11
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 550 mm
- Product weight
- 1.16 kg
- Quantity per set
- Set of 1
- functional unit
- 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct 11; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 3P 1 front connection 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 4P 1 front connection 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 3P 1 front connection 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 4P 1 front connection 11; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 with fixed toggle vertical 4P 1 direct 11; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 with fixed toggle vertical 4P 1 direct 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 3P 1 front connection 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 4P 1 front connection 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 3P 1 front connection 11; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 4P 1 front connection 11; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 48
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 300 mm
- Number of height units
- 11
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481873415
- SAP 1200546649
- Code 82880530
