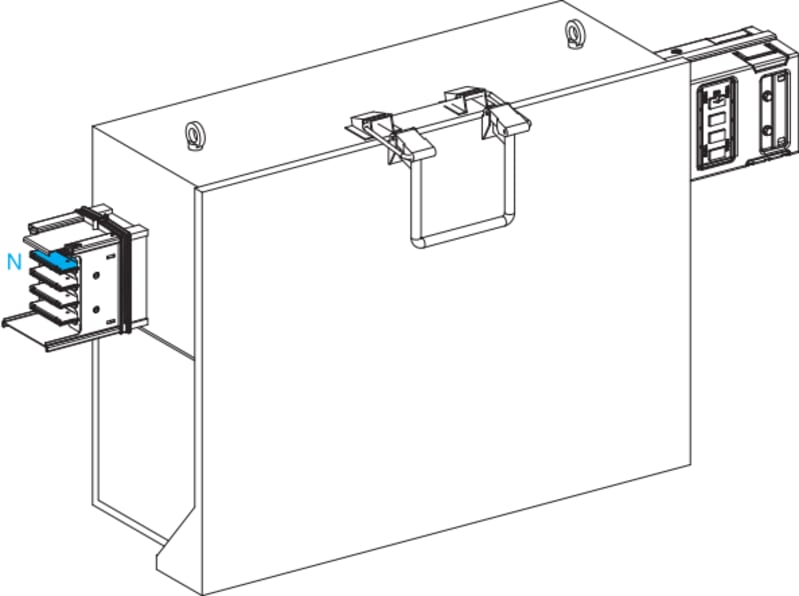

BOX 630A 3L+N NH3 (KSB630SE4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSB630SE4 Box 630A 3L+N Nh3.
Technical Specifications
- Manufacturer part number (MPN)
- KSB630SE4
- EAN / GTIN
- 3606480005657
- Sales unit
- pcs
- Rated current
- 630 A
- Range of product
- Canalis
- Range compatibility
- Canalis KS busbar trunking
- Product or component type
- Tap-off unit
- busbar trunking compatibility
- Canalis KS busbar trunkingplug-in
- [Ie] rated operational current
- 630 A at 35 °C
- protection type
- fuse insulator: blade type fuse, size 3 conforming to NF or DIN
- Provided equipment
- fuse to be ordered separately
- Mounting mode
- Plug-in with fixed polarity
- Tap-off unit polarity
- 3L+N+PE
- Colour
- White (RAL 9001)
- Device application
- Medium power distribution
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 500 V depending on protective device
- Network frequency
- 50/60 Hz
- Electrical connection
- Copper cable lug - ISO40 480 mm² flexible; Copper cable lug - ISO40 480 mm² rigid
- door/cover opening side
- Right
- Tap-off unit disconnection mode
- By opening the door
- Standards
- IEC 61439-1; IEC 61439-6
- Body material
- Metal
- Width
- 1144.5 mm
- Depth
- 300 mm
- depth (door open)
- 1106.5 mm
- Height
- 611 mm
- Product weight
- 59 kg
- Earthing system
- TT; TN-S; IT
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 1144.5 mm
- Degree of protection (IP)
- IP55
- Branch off type
- Pipe in-lead
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 630 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005657
- SAP 1200721834
- Code 83845670
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 220V DC coil, screw clamp terminals LC1D12MD
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 220V DC coil, screw clamp terminals LC1D09MD
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 16A, EverLink lugs C11H4TM016L
Schneider Electric
Schneider Electric APC Smart-UPS 5000VA 230V Rackmount/Tower SUA5000RMI5U
Schneider Electric
Schneider Electric 3 wires terminal block, Masterpact MTZ1, drawout, spare part, 1 part LV833098SP
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS1000N, 50KA at 415VAC, 1000A, 4P, drawout, manually operated, without control unit C100N4WM
Schneider Electric
Schneider Electric power relay plug-in - Harmony RPF - 2 CO - 120 V AC - 30 A RPF2BF7
Schneider Electric

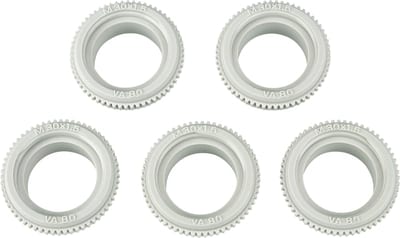

KNX V. Adapter VA 80
