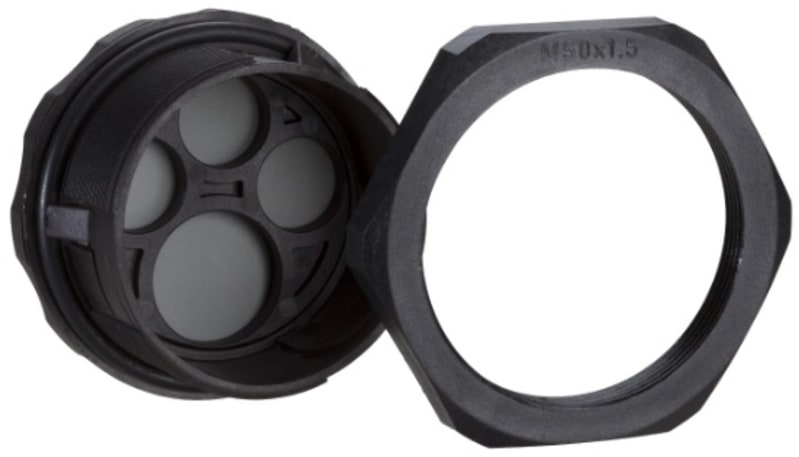

Schneider Electric PanelSeT Quick Cable Entry Plate IP65, Round, M50, 8 Entries

Schneider Electric NSYTSAM508SE is a round quick-fit cable entry plate for the PanelSeT enclosure range, providing eight sealed cable openings through a single M50 mounting hole. The polyamide plate accepts one cable of 6-10 mm diameter and seven cables of 3.6-6.5 mm without cable glands, and retains an IP65 rating once cables are inserted. Suitable for machine and control cabinets in the PanelSeT S3D, CRN, S3CM, SBM, PLA, PHD, PLM, PLS and S3HD families. Supplied in sets of ten.

Manufacturer part number (MPN)

NSYTSAM508SE

EAN / GTIN

3606480168185

HS code

8544.42

Sales unit

pcs

Package quantity

10 pcs

Range

PanelSeT

Product or component type

Quick entrance plate

Accessory / separate part category

Cable management accessory

Device application

Multi-purpose

Range compatibility

PanelSeT S3D compact enclosure; PanelSeT CRN compact enclosure; PanelSeT S3CM control enclosure; PanelSeT SBM SBM industrial box; PanelSeT PLA PLA suitable enclosure; PanelSeT PHD suitable enclosure; PanelSeT PLM PLM compact enclosure; PanelSeT PLS PLS insulating modular box; PanelSeT S3HD compact enclosure

Device composition

1 circular plate

Quantity per set

Set of 10

Mounting support

Body of enclosure; Cable gland plate

Material

Polyamide

Fixing mode

Clipped; By screws

Total cable entry number

8

Cable entry number

1 x 6…10 mm; 7 x 3.6…6.5 mm

Height

Real: 33 mm

Cable outer diameter

50.5 mm; 58 mm

Product weight

0.46 kg

IP degree of protection

IP65

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

50

Country of origin

FR

Warranty (in months)

18

HS Code

8544.42

• EAN 3606480168185
• SAP 1000488868
• Code 8602105
