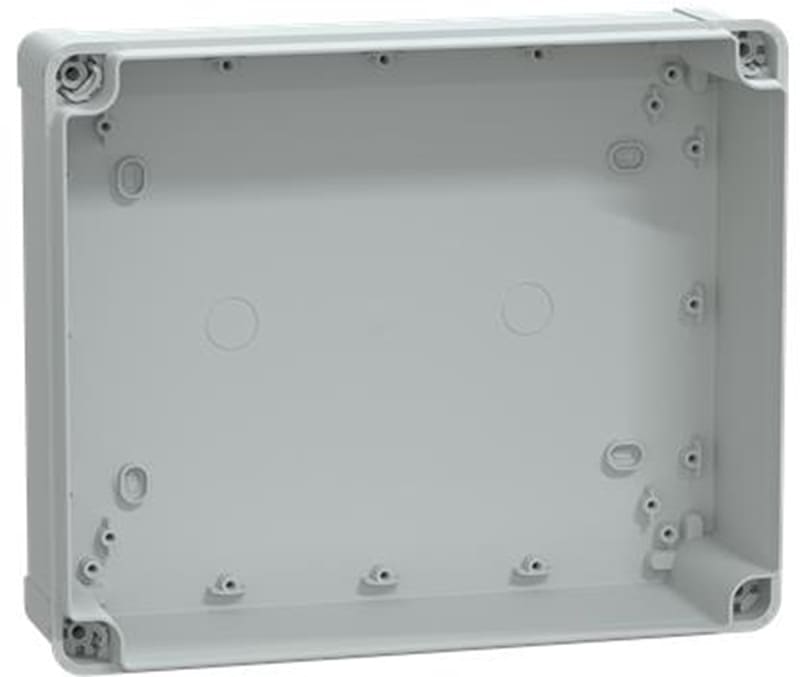

Schneider Electric PC box IP66 IK08 RAL7035 INT.H275W225D80 EXT.H291W241D88 Transparent cover H20 NSYTBP29248T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBP29248T 85135 Pc Box 291X241X88 K.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBP29248T
- EAN / GTIN
- 3606480165887
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Dimensions
- 291×241×88
- Range
- PanelSeT
- Product name
- PanelSeT TBP
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 291 mm
- Width
- 241 mm
- Depth
- 88 mm
- Internal height
- 275 mm
- Internal width
- 225 mm
- Internal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- Low transparent cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Polycarbonate
- Colour
- Grey (RAL 7035); Transparent
- Standards
- UL 508 A; IEC 62208
- Product certifications
- TÜV; UL
- Electrical insulation class
- Class II
- Mounting location
- Outdoor (with canopy or shelter and anticondensation valve)
- Product weight
- 0.86 kg
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK08 conforming to IEC 62262
- Fire resistance
- 960 °C
- Ambient air temperature for storage
- -15…60 °C
- Operating temperature
- -25…80 °C
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480165887
- SAP 1000090218
- Code 8846089
Product Documentation
