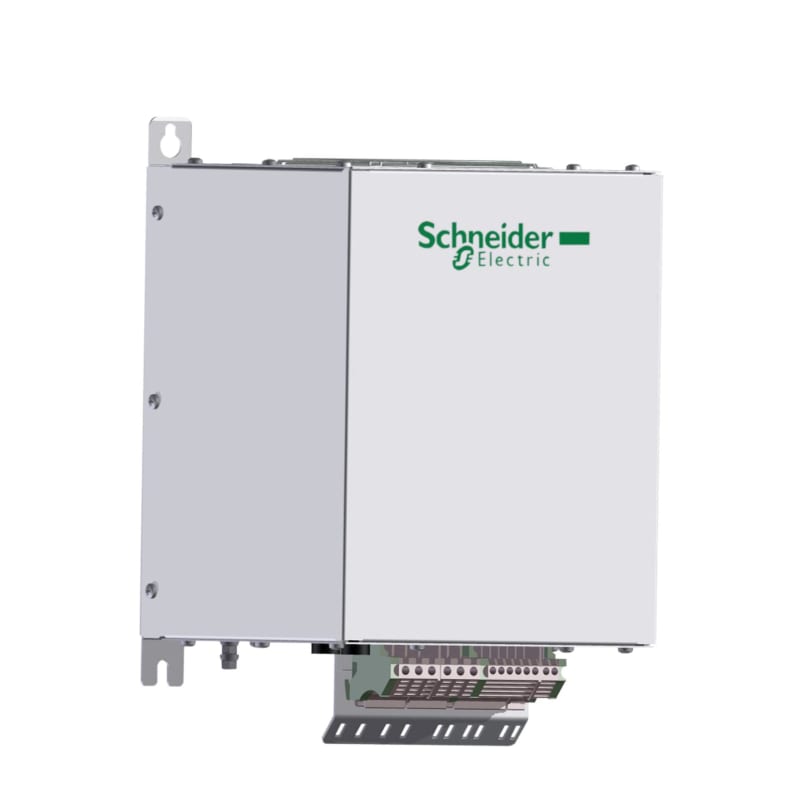

Passiva filter 6A 400V 50Hz
Part numberVW3A46120EAN / GTIN3606480640117HS code8548.90
Filters & Strainers
Filter Elements
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A46120 Passiva filter 6A 400V 50Hz 5%THDi.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A46120
- EAN / GTIN
- 3606480640117
- Sales unit
- pcs
- Voltage
- 400 V
- Rated current
- 6 A
- Frequency
- 50 Hz
- Product or component type
- Passive filter
- Product specific application
- Reduction of current harmonics
- Range compatibility
- Altivar Process ATV900; Altivar 61; Altivar 71; Altivar Process ATV600
- [Us] rated supply voltage
- 400 V +/- 10 %
- Supply frequency
- 50 Hz +/- 2 %
- Quantity per drive
- 1 filter per drive for variable speed drive ATV61W motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV61W motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV61W motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV61W motor: 3 kW; 1 filter per drive for variable speed drive ATV61H motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV61H motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV61H motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV61H motor: 3 kW; 1 filter per drive for variable speed drive ATV71H motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV71H motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV71H motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV71H motor: 3 kW; 1 filter per drive for variable speed drive ATV71P motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV71P motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV71P motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV71P motor: 3 kW; 1 filter per drive for variable speed drive ATV71W motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV71W motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV71W motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV71W motor: 3 kW; 1 filter per drive for variable speed drive ATV630 wall mount, motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV630 wall mount, motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV630 wall mount, motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV630 wall mount, motor: 3 kW; 1 filter per drive for variable speed drive ATV650 wall mount, motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV650 wall mount, motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV650 wall mount, motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV650 wall mount, motor: 3 kW; 1 filter per drive for variable speed drive ATV930 wall mount, motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV930 wall mount, motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV930 wall mount, motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV930 wall mount, motor: 3 kW; 1 filter per drive for variable speed drive ATV950 wall mount, motor: 0.75 kW/1 hp; 1 filter per drive for variable speed drive ATV950 wall mount, motor: 1.5 kW/2 hp; 1 filter per drive for variable speed drive ATV950 wall mount, motor: 2.2 kW/3 hp; 1 filter per drive for variable speed drive ATV950 wall mount, motor: 3 kW
- [In] rated current
- 6 A for input; 6.2 A for output
- Network number of phases
- 3 phases
- THDI
- 10 % for variable speed drive ATV61H motor: 0.75 kW/1 hp; 10 % for variable speed drive ATV61H motor: 1.5 kW/2 hp; 10 % for variable speed drive ATV61H motor: 2.2 kW/3 hp; 10 % for variable speed drive ATV61H motor: 3 kW; 10 % for variable speed drive ATV71H motor: 0.75 kW/1 hp; 10 % for variable speed drive ATV71H motor: 1.5 kW/2 hp; 10 % for variable speed drive ATV71H motor: 2.2 kW/3 hp; 10 % for variable speed drive ATV71H motor: 3 kW; 10 % for variable speed drive ATV71P motor: 0.75 kW/1 hp; 10 % for variable speed drive ATV71P motor: 1.5 kW/2 hp; 10 % for variable speed drive ATV71P motor: 2.2 kW/3 hp; 10 % for variable speed drive ATV71P motor: 3 kW; 10 % for variable speed drive ATV71W motor: 0.75 kW/1 hp; 10 % for variable speed drive ATV71W motor: 1.5 kW/2 hp; 10 % for variable speed drive ATV71W motor: 2.2 kW/3 hp; 10 % for variable speed drive ATV71W motor: 3 kW; 5 % for variable speed drive ATV61W motor: 0.75 kW/1 hp; 5 % for variable speed drive ATV61W motor: 1.5 kW/2 hp; 5 % for variable speed drive ATV61W motor: 2.2 kW/3 hp; 5 % for variable speed drive ATV61W motor: 3 kW; 5 % for variable speed drive ATV630 motor: 0.75 kW/1 hp; 5 % for variable speed drive ATV630 motor: 1.5 kW/2 hp; 5 % for variable speed drive ATV630 motor: 2.2 kW/3 hp; 5 % for variable speed drive ATV630 motor: 3 kW; 5 % for variable speed drive ATV650 motor: 0.75 kW/1 hp; 5 % for variable speed drive ATV650 motor: 1.5 kW/2 hp; 5 % for variable speed drive ATV650 motor: 2.2 kW/3 hp; 5 % for variable speed drive ATV650 motor: 3 kW; 5 % for variable speed drive ATV930 motor: 0.75 kW/1 hp; 5 % for variable speed drive ATV930 motor: 1.5 kW/2 hp; 5 % for variable speed drive ATV930 motor: 2.2 kW/3 hp; 5 % for variable speed drive ATV930 motor: 3 kW; 5 % for variable speed drive ATV950 motor: 0.75 kW/1 hp; 5 % for variable speed drive ATV950 motor: 1.5 kW/2 hp; 5 % for variable speed drive ATV950 motor: 2.2 kW/3 hp; 5 % for variable speed drive ATV950 motor: 3 kW
- Max current
- 1.5 x nominal current (duration = 60 s)
- Efficiency
- 98 %
- Thermal losses
- 88 W
- Cos phi
- 1 (150 % of line current); 0.85 (75 % of line current); 0.99 (100 % of line current)
- Electrical connection
- X1-1...X2-3 terminal, connection capacity: 0.5...10 mm²; A, B terminal, connection capacity: 2.5 mm²
- Electrical insulation class
- Class F
- Product weight
- 16 kg
- IP degree of protection
- IP20; IP55 (enclosure mounting)
- Vibration resistance
- 2 mm peak to peak (f= 5…13.2 Hz) conforming to IEC 60068-2-6; 0.7 gn (f= 13.2…150 Hz) conforming to IEC 60068-2-6
- Relative humidity
- 5…85 % without condensation
- Ambient air temperature for operation
- 45…60 °C (with current derating 3 % per °C); 5…45 °C (without current derating)
- Ambient air temperature for storage
- -25…55 °C storage in original packaging; -25…65 °C during transport
- Operating altitude
- 1000...4000 m with current derating 5 % per 1000 m
- Standards
- G5/4 engineering recommendation; IEC 61000-3-4; IEC 61000-3-12; IEC 61000-2-4; IEC 61000-2-2; IEC 61000-3-2
- Country of origin
- DE
- Warranty (in months)
- 18
- Suitable as sinus filter
- No
- Suitable as du/dt-filter
- No
- Suitable as radio interference suppression filter
- No
- Suitable as audio frequency blockage
- No
- Number of poles, primary side
- 3
- Max. rated operation voltage Ue
- 400 V
- Max. rated current (Ith) at rated voltage DC
- 6 A
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480640117
- SAP 1200498402
