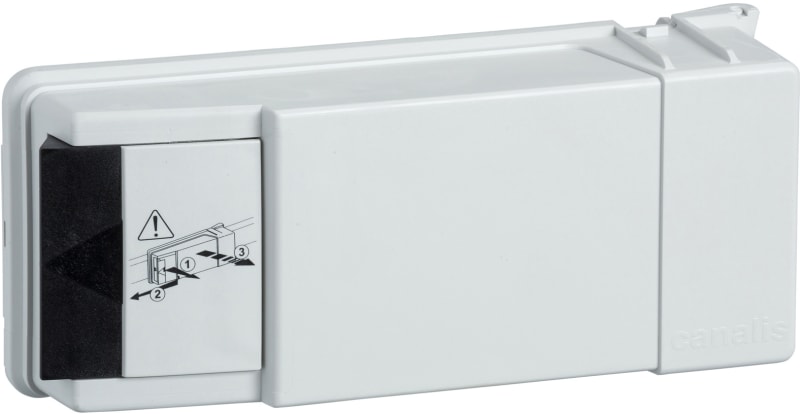

Schneider Electric Canalis - tap-off unit - 16A - 3L+N+PE - with protection KBC16DCF40
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KBC16DCF40 Plug 3+N For Fuse 8,5X31,5.
Technical Specifications
- Manufacturer part number (MPN)
- KBC16DCF40
- EAN / GTIN
- 3606480002328
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Range
- Canalis
- Offer type
- Classic; Control system
- Product or component type
- Connector
- Device application
- Lighting
- Range compatibility
- Canalis KBA busbar trunking; Canalis KBB busbar trunking
- [Ie] rated operational current
- 16 A at 35 °C
- [Ue] rated operational voltage
- 230...400 V
- Network frequency
- 50/60 Hz
- Busbar trunking polarity
- L2 + L1 + L3 + N + PE
- Protection type
- Fuse
- Fuse type
- Cylindrical: 8.5 x 31.5 mm - gG conforming to NF
- Communication port protocol
- DALI
- Tap-off unit polarity
- 3L+N+PE
- Tap-off unit connector type
- With fixed polarity
- Provided equipment
- Fuse not supplied
- Colour
- Cream (RAL 9001)
- [Ui] rated insulation voltage
- 690 V
- Width
- 205 mm
- Depth
- 38 mm
- Height
- 68 mm
- Product weight
- 90 g
- Standards
- EN/IEC 60439-2; EN/IEC 61439-6
- IP degree of protection
- IP55 conforming to EN/IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 18
- Number of Units in Package 3
- 144
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- Cylindrical fuse
- Number of conductors (without earthing)
- 4
- Phase selection
- Yes
- Number of poles
- 5
- Length
- 205 mm
- Degree of protection (IP)
- IP55
- Branch off type
- Pipe in-lead
- Rated current AC 50 Hz
- 16 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480002328
- SAP 1000285117
- Code 81004289
