Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1200MM, 1 row, set of 2 NSYSUCR40120
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSUCR40120 Cross-arm 1200/1.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSUCR40120
- EAN / GTIN
- 3606485133287
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Universal cross rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - H: 1200 mm
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- Between cross rails; On structure of enclosure
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails; 4 supports
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 1
- Maximum load
- 20 kg
- Height
- Nominal: 1200 mm; Useful: 1107 mm
- Width
- 40 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 180
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 1200 mm
- Suitable for enclosure building height
- 1200 mm
- Max. load capacity
- 20 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485133287
- SAP 1000090157
- Code 8893155
Product Documentation
More from Schneider Electric
Schneider Electric
Back panel SFN 1800X1200
NSYBPN1812
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 72V DC low consumption coil, snap-in terminals LC1D09ASL
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, glazed door, 1800X600X800MM, IP55 NSYSFN18680T
Schneider Electric
Front plate NS/MTZ1-VERTICAL-400MM-WITHDRAWABLE P
LVS03699
Schneider Electric

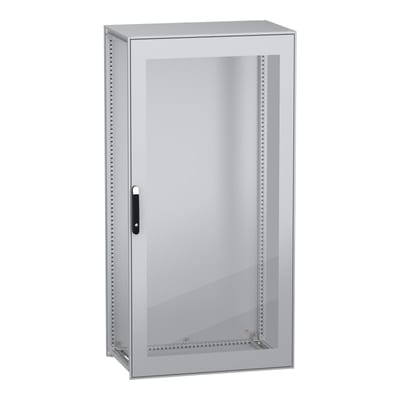

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, glazed door, 2000X1000X600MM, IP55 NSYSFN201060T
Schneider Electric

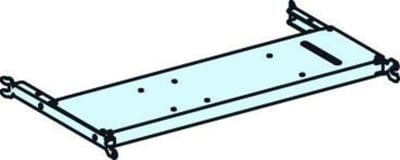

Mounting plate MTZ1 fast Vertical Prisma P
LVS03484
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 220V DC low consumption coil, snap-in terminals CAD32AML
Schneider Electric

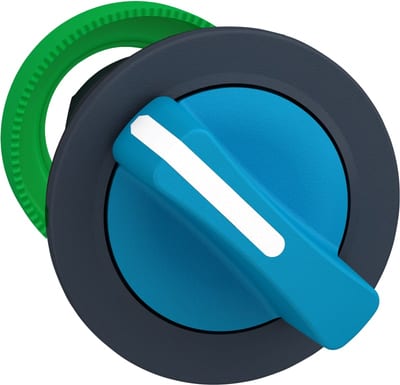

Schneider Electric flush mounted blue selector switch head 2 pos return right to left ZB5FD406
