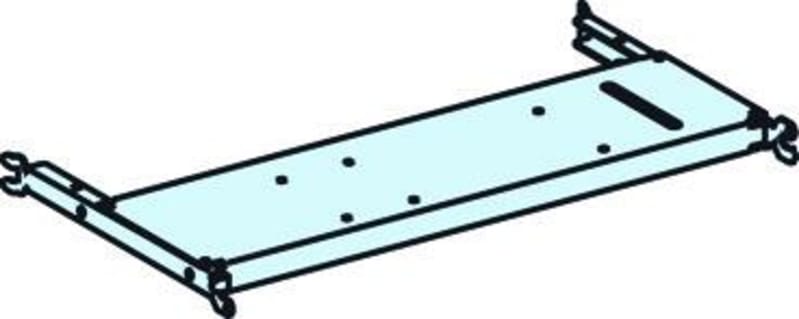

Mounting plate MTZ1 fast Vertical Prisma P
Part numberLVS03484EAN / GTIN3606481874511HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03484 Mounting plate for MTZ1-fast-vertical mounting-3P/4P-PrismaSeT P-for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03484
- EAN / GTIN
- 3606481874511
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm; Cubicle - width 650 mm depth 800 mm
- Installed device
- Masterpact: fixed NT06...10 - control: toggle - vertical installation; Masterpact: fixed NT06...10 - control: motor mechanism - vertical installation; Masterpact: fixed NT12 - control: toggle - vertical installation; Masterpact: fixed NT12 - control: motor mechanism - vertical installation; Masterpact: fixed NT16 - control: toggle - vertical installation; Masterpact: fixed NT16 - control: motor mechanism - vertical installation
- Poles description
- 1 x 3P: fixed NT06...10 vertical installation; 1 x 4P: fixed NT06...10 vertical installation; 1 x 3P: fixed NT12 vertical installation; 1 x 4P: fixed NT12 vertical installation; 1 x 3P: fixed NT16 vertical installation; 1 x 4P: fixed NT16 vertical installation
- Number of vertical modules [50 mm]
- 11 module(s): NT06...10, rear connection on adaptor in 650 mm Widecubicle; 16 module(s): NT06...10, rear connection on Canalis in 650 mm Widecubicle; 11 module(s): NT12, rear connection on adaptor in 650 mm Widecubicle; 16 module(s): NT12, rear connection on Canalis in 650 mm Widecubicle; 11 module(s): NT16, rear connection on adaptor in 650 mm Widecubicle; 16 module(s): NT16, rear connection on Canalis in 650 mm Widecubicle; 12 module(s): NT06...10, front connection on adaptor in 650 mm Widecubicle; 17 module(s): NT06...10, front connection on Canalis in 650 mm Widecubicle; 14 module(s): NT12, front connection on adaptor in 650 mm Widecubicle; 17 module(s): NT12, front connection on Canalis in 650 mm Widecubicle; 14 module(s): NT16, front connection on adaptor in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 30 mm
- Product weight
- 2.4 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 front connection on adaptor 12 437.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 3P 1 front connection on adaptor 12 437.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 3P 1 rear connection on adaptor 11 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 front connection on Canalis 17 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 3P 1 front connection on Canalis 17 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 rear connection on Canalis 16 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 4P 1 front connection on adaptor 12 437.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 4P 1 front connection on adaptor 12 437.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 4P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 4P 1 rear connection on adaptor 11 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 4P 1 front connection on Canalis 17 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 4P 1 front connection on Canalis 17 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 4P 1 rear connection on Canalis 16 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 front connection on adaptor 14 537.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 3P 1 front connection on adaptor 14 537.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 3P 1 rear connection on adaptor 11 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 front connection on Canalis 17 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 3P 1 front connection on Canalis 17 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 rear connection on Canalis 16 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 4P 1 front connection on adaptor 14 537.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 4P 1 front connection on adaptor 14 537.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 4P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 4P 1 rear connection on adaptor 11 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 4P 1 front connection on Canalis 17 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 4P 1 front connection on Canalis 17 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 4P 1 rear connection on Canalis 16 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 3P 1 front connection on adaptor 14 537.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 3P 1 front connection on adaptor 14 537.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 3P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 3P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 3P 1 rear connection on Canalis 16 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16 687.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 front connection on adaptor 14 537.5 mm; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 front connection on adaptor 14 537.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 rear connection on adaptor 11 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 rear connection on Canalis 16 687.5 mm; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16 687.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
