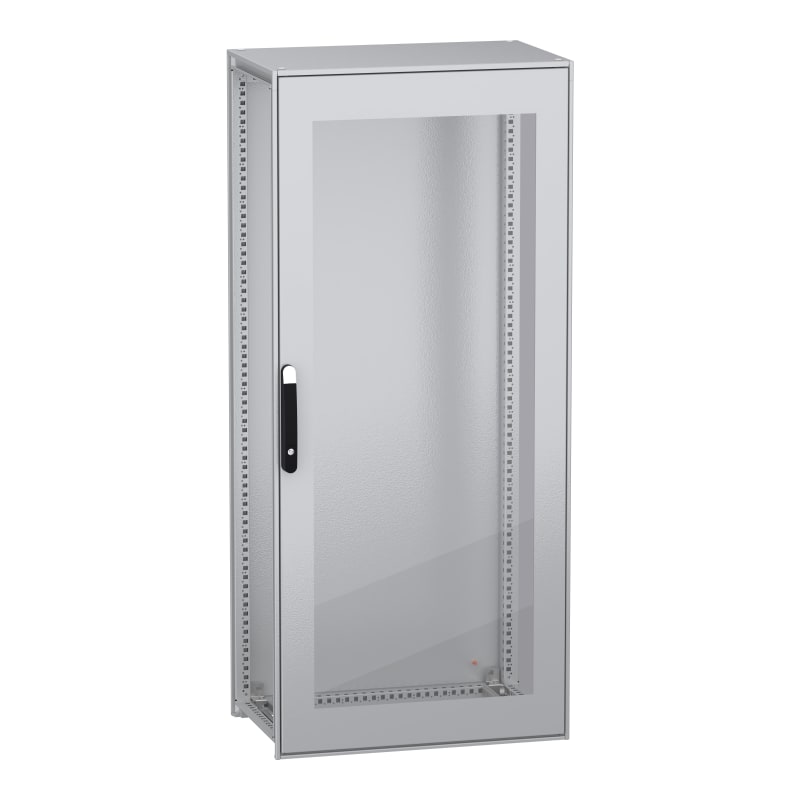

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, glazed door, 1800X800X500MM, IP55 NSYSFN18850T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN18850T Floor-standing cabinet byggbart, PanelSeT SFN, 1800x800x500, with glass door, without mounting plate, IP55.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN18850T
- EAN / GTIN
- 3606486102848
- Sales unit
- pcs
- Dimensions
- 1800×800×500
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 1800 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 500 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof
- Structure type
- Vertical uprights joined with top and bottom frames; Perforated structure with a pitch of 25 mm; Formed from a single section; Panels and doors built into the structure
- Door opening side
- Reversible (120 °)
- Door type
- Glazed front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: Securit glass; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 69.4 kg
- Standards
- IEC 62208
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 800 mm
- Height
- 1800 mm
- Depth
- 500 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486102848
- SAP 1200727708
- Code 83866966
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric motor-mechanism - MCH - 200..240 V AC 47466
Schneider Electric
Schneider Electric Vertical Profile 2200mm (NSYVR22)
Schneider Electric
Floor-Standing Cabinet 20X16X5 U.PL.
NSYSM2016502D
Schneider Electric
Glassdoor SFN/SM 2000X1200
NSYSFND20122DT
Schneider Electric
Innerdoor 6X4 (NSYPIN64)
Schneider Electric

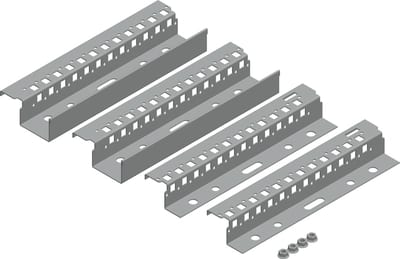

Schneider Electric PanelSeT SM top/bottom adjustment rail - depth 300 mm NSYSTBR3
Schneider Electric

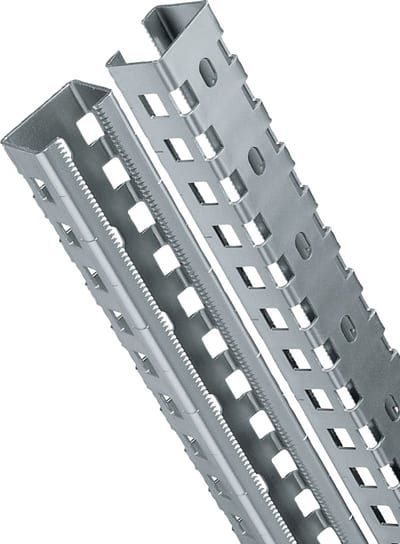

Schneider Electric Vertical Profile 1400mm
NSYTVR14
Schneider Electric

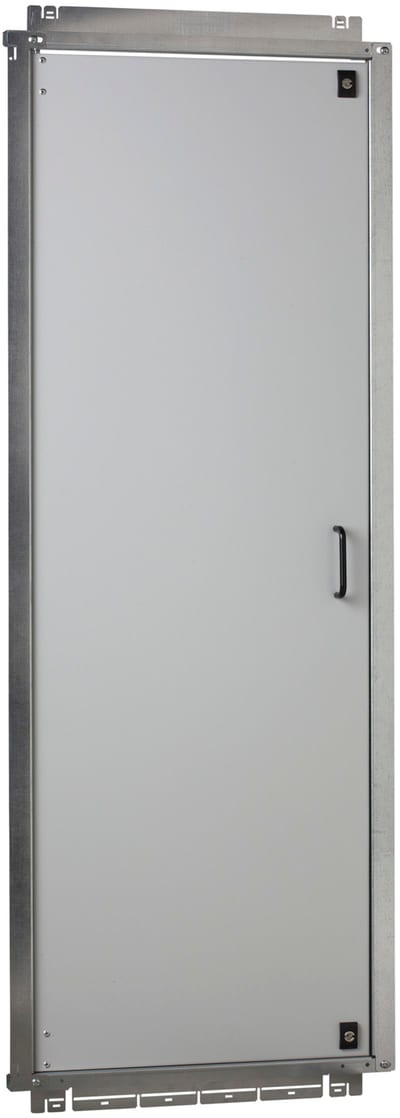

Lock insert, inner door 20X6
