Glassdoor SFN/SM 2000X1200
Pricing
Request a quote
We reply within 24 hours
Product Description

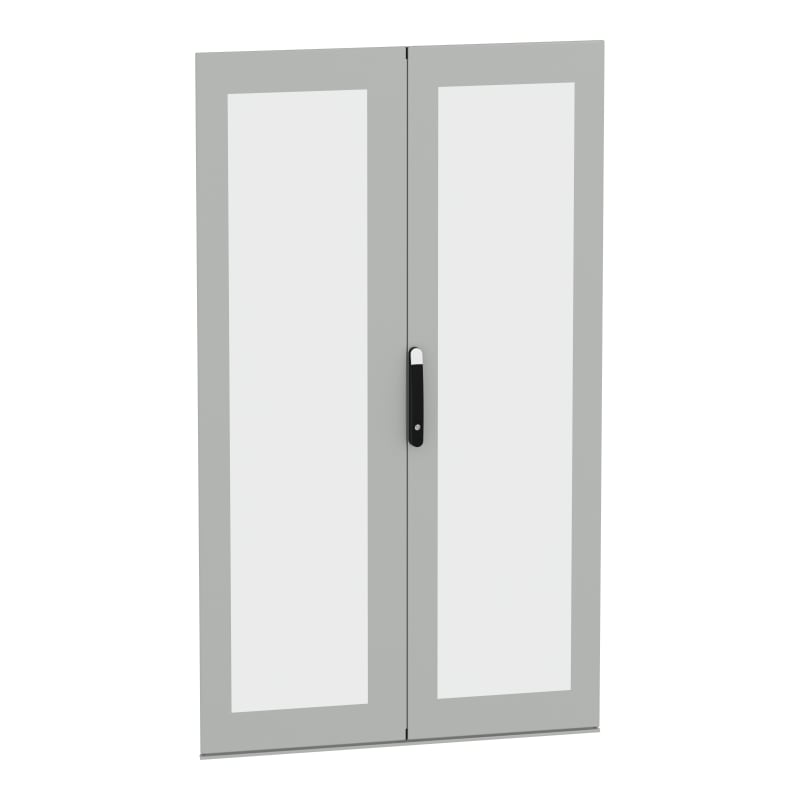

Schneider Electric NSYSFND20122DT Glass door, PanelSeT SFN/SM, complete with locking system, 2000x1200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND20122DT
- EAN / GTIN
- 3606486378373
- Sales unit
- pcs
- Dimensions
- 2000×1200 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2000 mm W: 1200 mm
- Mounting location
- Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 2 door; 1 locking bar system 2 points; 8 hinges
- Quantity per set
- Set of 1
- Material
- Door: Securit glass; Door: sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- External transparent
- Door opening side
- Reversible (120 °)
- Maximum load
- 60 kg/m²
- Height
- Nominal: 1966 mm
- Width
- Nominal: 1169 mm
- Product weight
- 23.4 kg
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378373
- SAP 1200698037
- Code 83799617
Product Documentation
More from Schneider Electric
Schneider Electric
Innerdoor 6X4 (NSYPIN64)
Schneider Electric
Schneider Electric PanelSeT SM top/bottom adjustment rail - depth 300 mm NSYSTBR3
Schneider Electric
Schneider Electric Vertical Profile 1400mm
NSYTVR14
Schneider Electric
Lock insert, inner door 20X6
NSYID206
Schneider Electric

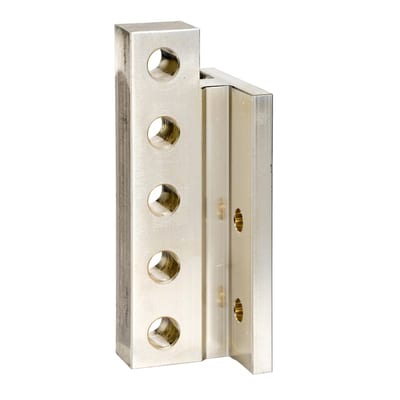

Schneider Electric Rear vertical connection, MasterPact MTZ2 fixed/drawout, 3P, 4000A, spare part LV847968SP
Schneider Electric

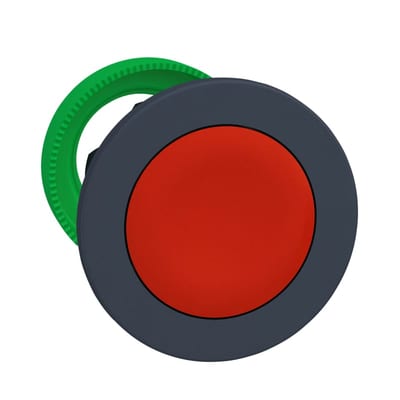

Schneider Electric flush mounted red flush caps pushbutton head ZB5FA4
Schneider Electric

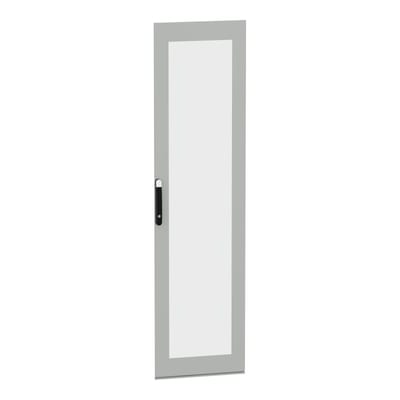

Glassdoor SFN/SM 2200X600 (NSYSFND226T)
