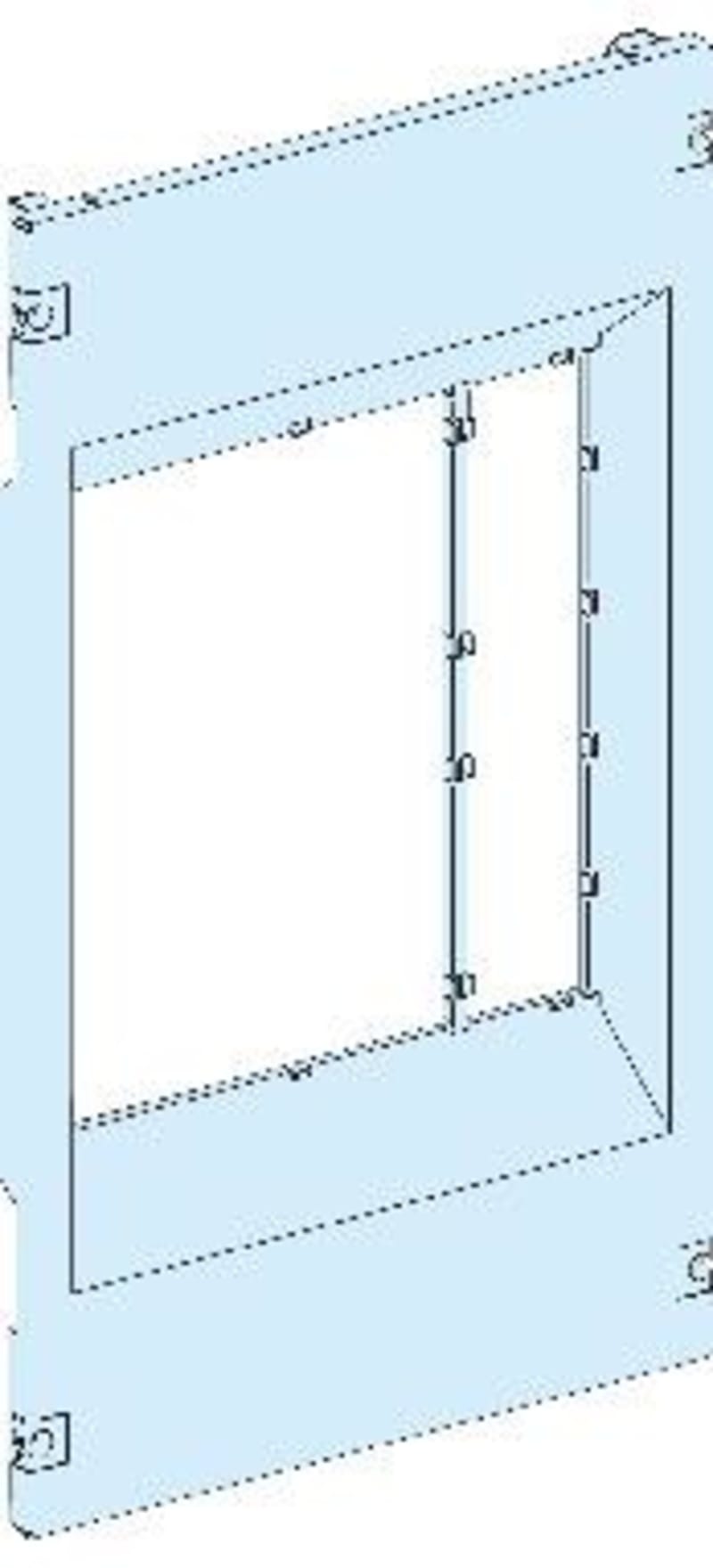

Front plate NS/MTZ1-VERTICAL-400MM-WITHDRAWABLE P
Part numberLVS03699EAN / GTIN3606481866394HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03699 Front plate for NS/MTZ1-3P-vertical mounting-withdrawable-in 400mm section-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03699
- EAN / GTIN
- 3606481866394
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: drawout NS1250 - control: toggle - vertical installation; ComPact: drawout NS1250 - control: direct front rotary handle - vertical installation; ComPact: drawout NS1250 - control: motor mechanism - vertical installation; ComPact: drawout NS1600 - control: toggle - vertical installation; ComPact: drawout NS1600 - control: direct front rotary handle - vertical installation; ComPact: drawout NS1600 - control: motor mechanism - vertical installation; ComPact: drawout NS630b...1000 - control: toggle - vertical installation; ComPact: drawout NS630b...1000 - control: direct front rotary handle - vertical installation; ComPact: drawout NS630b...1000 - control: motor mechanism - vertical installation; Masterpact: drawout NT06...10 - control: toggle - vertical installation; Masterpact: drawout NT12 - control: toggle - vertical installation; Masterpact: drawout NT16 - control: toggle - vertical installation
- Poles description
- 1 x 3P: mounting plate support: NS1250 vertical installation; 1 x 3P: mounting plate support: NS1600 vertical installation; 1 x 3P: mounting plate support: NS630b...1000 vertical installation; 1 x 3P: mounting plate support: NT06...10 vertical installation; 1 x 3P: mounting plate support: NT12 vertical installation; 1 x 3P: mounting plate support: NT16 vertical installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle duct - width 400 mm depth 400 mm
- Connection position
- Direct connection; Front connection
- Number of vertical modules [50 mm]
- 10
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 321 mm
- Height
- 554 mm
- Product weight
- 2.04 kg
- Quantity per set
- Set of 1
- functional unit
- 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT16 drawout toggle vertical 3P 1 front connection 36
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 20
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 400 mm
- Number of height units
- 11
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866394
- SAP 1200546731
- Code 82879600
