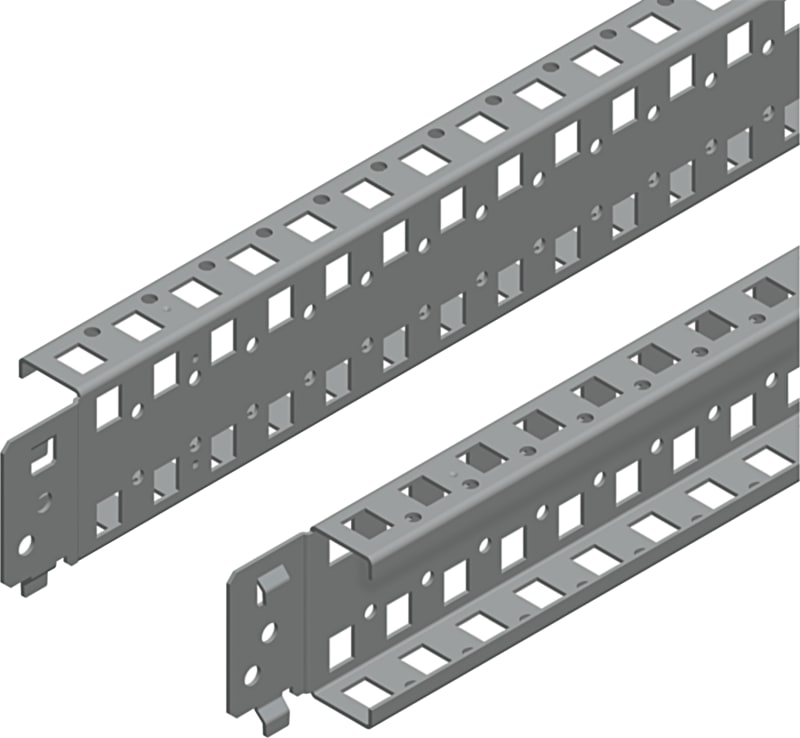

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1000MM, 2 rows, set of 2 NSYSQCR65100
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSQCR65100 Cross-arm 1000/2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSQCR65100
- EAN / GTIN
- 3606485132686
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Quick cross rails
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- Between cross rails; On structure of enclosure
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws; Clipped - on structure location
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 2
- Maximum load
- 50 kg
- Height
- Nominal: 1000 mm; Useful: 910 mm
- Width
- 65 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 180
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 1000 mm
- Max. load capacity
- 50 kg
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485132686
- SAP 1000090117
- Code 8845821
Product Documentation
