Floor-Standing Cabinet 14X10X4 M.PL.
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSM1410402DP Floor-standing cabinet 14X10X4 M.Pl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM1410402DP
- EAN / GTIN
- 3606485120089
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 2 door; 1 cable gland plate; 1 locking system with handle: door; 1 blocking system: left door; 4 mounting plate bracket; 1 mounting plate
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Mounting plate bracket by screws
- Enclosure nominal height
- 1400 mm
- Enclosure nominal width
- 1000 mm
- Enclosure nominal depth
- 400 mm
- Number of doors
- Front: 2 door(s)
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Single piece body with welded rear panel; Front part forming a rigid frame with welded corners
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Mounting plate: galvanised steel; Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 104 kg
- Standards
- IEC 62208
- Product certifications
- DNV; BV; UL
- IK degree of protection
- IK10 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1400 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485120089
- SAP 1000089981
- Code 8845435
Product Documentation
More from Schneider Electric
Schneider Electric
Angleconnection 3P G630-800 (LA9G3683)
Schneider Electric
Schneider Electric Harmony XB4 Illuminated Push-Button Head, Projecting, Green, BA9s
ZB4BW13
Schneider Electric
Spacer M8 height 60 (NSYEX608)
Schneider Electric
Schneider Electric PrismaSeT P LVS08702 Height Adjustment Kit 10 mm, Set of 4
Schneider Electric
Selector switch flush for LED 3 pos blue (ZB5FK1763)
Schneider Electric
Schneider Electric flush mounted black selector switch head knurled knob 3 pos stay put ZB5FD39
Schneider Electric
Mounting plate NSXMVIGI-VERT.-B650-PRISMASET P
LVS03406
Schneider Electric

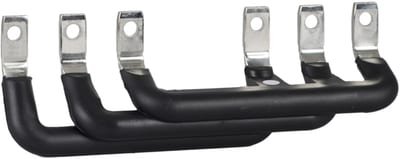

Schneider Electric TeSys Deca LA9D11571 Main Power Connection Set for LC1D115/D150
