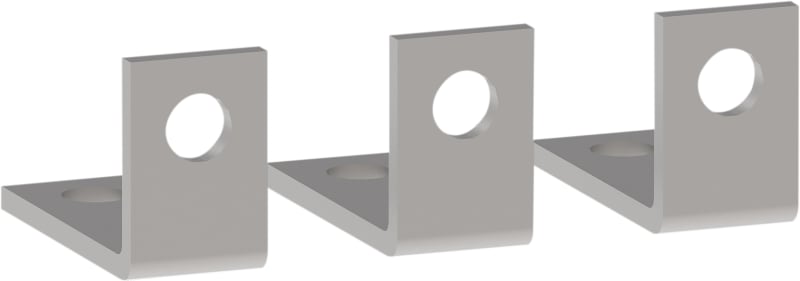

Angleconnection 3P G630-800 (LA9G3683)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LA9G3683 Angled connection extensions 2 hole for TeSys LC1G630-800, 3-pole.
Technical Specifications
- Manufacturer part number (MPN)
- LA9G3683
- EAN / GTIN
- 3606481015983
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Number of poles
- 3P
- Range
- TeSys
- Device short name
- LA9G
- Product or component type
- Terminal extension
- Accessory / separate part category
- Extension accessories
- Range compatibility
- TeSys LC1G
- Product compatibility
- LC1G630...800; LC1G620
- Connector type
- Short rear
- Mounting location
- Back side
- Height
- 86 mm
- Width
- 48 mm
- Depth
- 64 mm
- Product weight
- 1.182 kg
- Quantity per set
- Set of 3
- Operating altitude
- 3000 m without derating; 5000 m with derating factor
- Standards
- EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; GB/T 14048
- Pollution degree
- 3 conforming to IEC 60947-1
- Warranty (in months)
- 18
- Type of accessory/spare part
- Connection technique
- Accessory
- Yes
- Spare part
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481015983
- SAP 1200587867
- Code 82997019
