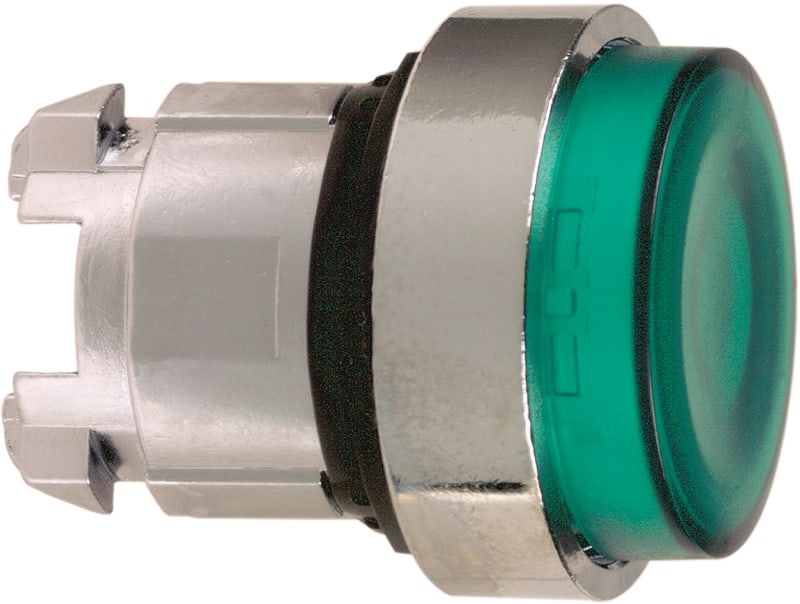

Schneider Electric Harmony XB4 Illuminated Push-Button Head, Projecting, Green, BA9s

Schneider Electric ZB4BW13 is a Harmony XB4 head for illuminated push-button with a projecting green operator, spring return action and BA9s lamp compatibility. The 22.5 mm mounting diameter unit uses a chromium-plated metal bezel with a plain lens and pairs with matching XB4 contact and light blocks. Rated IP66/IP69/IP69K per IEC 60529 with a mechanical life of 10 million cycles over a −40 to 55 °C operating range.

Manufacturer part number (MPN)

ZB4BW13

EAN / GTIN

3389110889758

Sales unit

pcs

Package quantity

50 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated push-button

Device short name

ZB4

Product compatibility

BA 9s

Bezel material

Chromium plated metal

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green projecting, unmarked

Operator additional information

With plain lens

Cap/operator or lens colour

Green

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

32 mm

Product weight

0.028 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

10000000 cycles

Electrical composition code

M7 for <6 contacts using single blocks in front mounting with BA 9s; M8 for <6 contacts using single and double blocks in front mounting with BA 9s; M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…55 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 62262

Standards

CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-1; IEC 60947-5-5; UL 508; IEC 60947-5-4; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

50

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Green

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

High

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90
