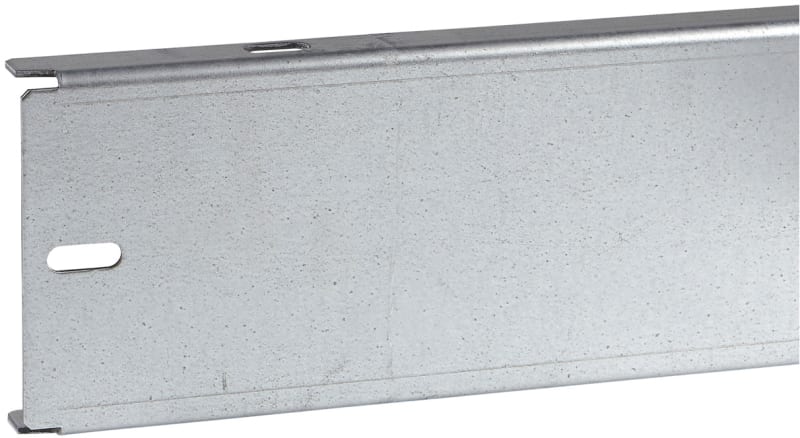

Intermediate Mounting Plate (NSYSIMP20)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSIMP20 Intermediate mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSIMP20
- EAN / GTIN
- 3606485132013
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting plate description
- Intermediate plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SFX
- Device composition
- 1 intermediate mounting plate; fixing elements
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing element
- Height
- Nominal: 2000 mm; Real: 1896 mm
- Width
- Real: 98 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 10.500 cm
- Package 1 Length
- 189.000 cm
- Package 1 Weight
- 4.104 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 54
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 248.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132013
- SAP 1000089967
- Code 8915709
