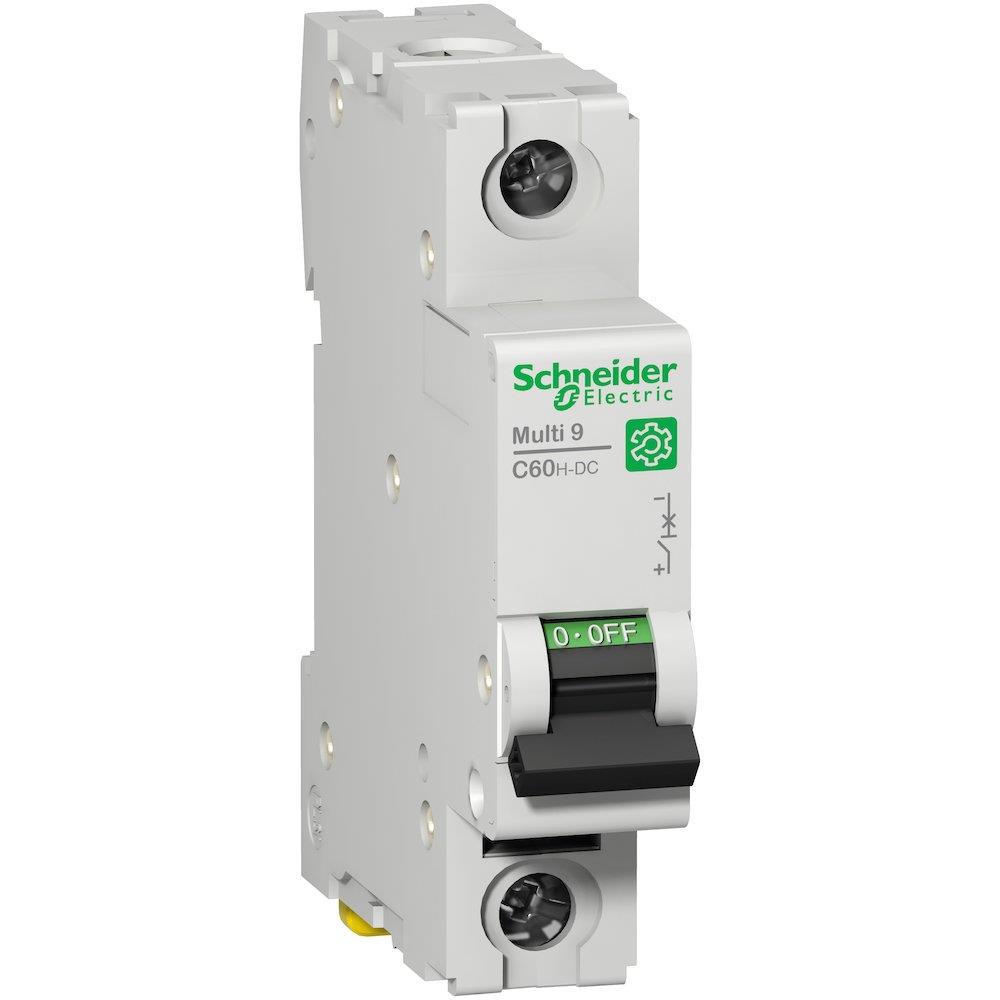

Schneider MULTI9 C60H-DC Circuit breaker - MULTI9 C60, 32A, 2P, C 3606480741685

Schneider Multi9 C60H-DC Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Multi9 C60, current rating 32 A, number of poles 2P, tripping characteristic C. Supplied under manufacturer part number M9U21132, EAN 3606480741685, HS code 8536.20, country of origin China.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Multi9 C60

Current rating

32 A

Number of poles

2P

Tripping characteristic

C

Width

36 mm

REACH SVHC substance above 0.1%

None

Carbon footprint (EPD)

0.8516 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

M9U21132

Range

Multi9

Product name

Multi9 C60H-DC

Product or component type

Miniature circuit-breaker

Device short name

C60H-DC

Device application

Distribution

Poles description

1P

Number of protected poles

1

[In] rated current

32 A at 25 °C conforming to EN/IEC 60947-2

Network type

DC

Trip unit technology

Thermal-magnetic

Curve code

C

Breaking capacity

10 kA Icu at 220 V DC conforming to EN/IEC 60947-2; 6 kA Icu at 250 V DC conforming to EN/IEC 60947-2; 20 kA Icu at 110 V DC conforming to EN/IEC 60947-2; 5 kA AIR at 12...250 V DC conforming to UL 1077; 10 kA Icu at 220 V DC conforming to GB/T 14048.2; 6 kA Icu at 250 V DC conforming to GB/T 14048.2; 20 kA Icu at 110 V DC conforming to GB/T 14048.2

Utilisation category

Category A conforming to EN/IEC 60947-2

Standards

EN/IEC 60947-2; GB/T 14048.2; UL 1077

Product certifications

IEC; CCC; UR

[Ue] rated operational voltage

250 V DC; 110 V DC; 220 V DC

Magnetic tripping limit

7...10 x In DC

[Ics] rated service breaking capacity

7.5 kA 75 % conforming to EN/IEC 60947-2 - 220 V DC; 4.5 kA 75 % conforming to EN/IEC 60947-2 - 250 V DC; 15 kA 75 % conforming to EN/IEC 60947-2 - 110 V DC; 7.5 kA 75 % conforming to GB/T 14048.2 - 220 V DC; 4.5 kA 75 % conforming to GB/T 14048.2 - 250 V DC; 15 kA 75 % conforming to GB/T 14048.2 - 110 V DC

[Ui] rated insulation voltage

500 V DC conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

2

Height

81 mm

Depth

73 mm

Product weight

0.128 kg

Colour

Grey

Mechanical durability

20000 cycles

Electrical durability

3000 cycles 250 V DC L/R = 2 ms; 6000 cycles 250 V DC

Provision for padlocking

Padlockable

Connections - terminals

Tunnel type terminal (top or bottom)1…35 mm² (18 AWG...2 AWG) - rigid stranded; Tunnel type terminal (top or bottom)1…25 mm² (18 AWG...4 AWG) - flexible; Tunnel type terminal (top or bottom)1…25 mm² (18 AWG...4 AWG) - flexible with ferrule; Tunnel type terminal (top or bottom) - 2 cable(s) 1…16 mm² (18 AWG...6 AWG) - rigid stranded; Tunnel type terminal (top or bottom) - 2 cable(s) 1…16 mm² (18 AWG...6 AWG) - flexible; Tunnel type terminal (top or bottom) - 2 cable(s) 1…16 mm² (18 AWG...6 AWG) - flexible with ferrule; Tunnel type terminal (top or bottom) - 3 cable(s) 4 mm² (6 AWG) - flexible stranded

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Earth-leakage protection

Without

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Tropicalisation

2 conforming to IEC 60068-2; 2 conforming to GB/T 14048.2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

144

Warranty (in months)

18

EAN

3606480741685

HS Code

8536.20

• EAN 3606480741685
• MPN M9U21132
