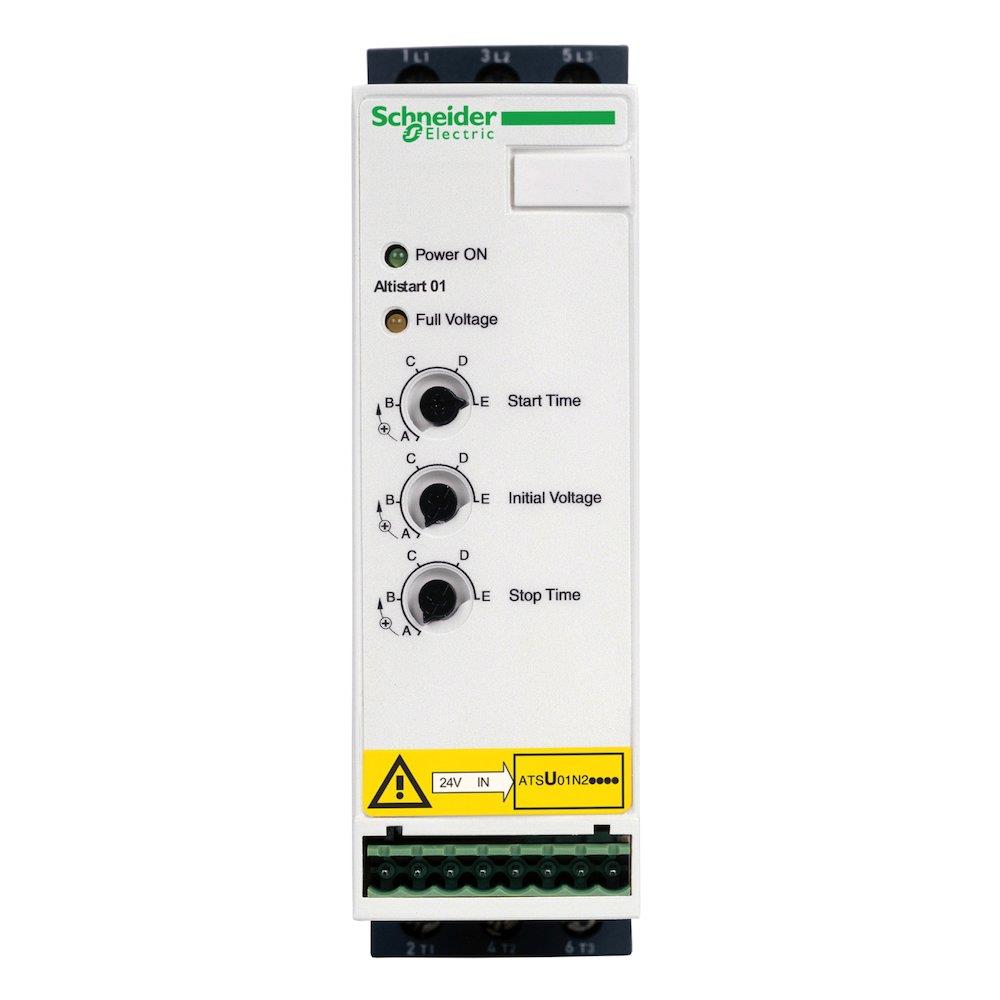

Schneider ATSU01 Soft Starter - 480V

Schneider ATSU01 Soft Starter. Frequency converters (Electrical Engineering). Principal data: voltage 480 V. Supplied under manufacturer part number ATSU01N232LT, EAN 3389110667127, HS code 8537.10, country of origin Germany.

Product type

Frequency converters Voltage: 480 V Carbon footprint (EPD): 8.5091 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 85371098 HS code: 8537.10 Manufacturer part number: ATSU01N232LT Range of product: Altistart U01 and TeSys U Product destination: Asynchronous motors Product or component type: Soft starter Product specific application: Simple machine Device short name: ATSU01 Network number of phases: 3 phases [Us] rated supply voltage: 200...480 V - 10...10 % Motor power kW: 15 kW, 3 phases at 400 V; 7.5 kW, 3 phases at 230 V Motor power hp: 10 hp, 3 phases at 230 V; 20 hp, 3 phases at 460 V IcL starter rating: 32 A Utilisation category: AC-53B conforming to EN/IEC 60947-4-2 Current consumption: 100 mA Type of start: start with voltage ramp Power dissipation in W: 2.5 W at full load and at end of starting; 322.5 W in transient state Assembly style: With heat sink Function available: Integrated bypass Supply voltage limits: 180…528 V Supply frequency: 50...60 Hz - 5...5 % Network frequency: 47.5...63 Hz output voltage: <= power supply voltage [Uc] Control circuit voltage: 24 V DC +/- 10 % Starting time: Adjustable from 1 to 10 s; 1 s / 50; 10 s / 5; 5 s / 10 Deceleration time symb: Adjustable from 1 to 10 s Starting torque: 30...80 % of starting torque of motor connected directly on the line supply Discrete input type: Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm Discrete input voltage: 24...40 V Input output isolation: Galvanic between power and control Discrete input logic: Positive LI1, LI2, BOOST at State 0: 13 V, >= 0.5 mA Discrete output current: 2 A DC-13; 3 A AC-15 Discrete output type: Open collector logic LO1 end of starting signal; Relay outputs R1A, R1C NO Discrete output voltage: 24 V (voltage limits: 6...30 V) open collector logic minimum switching current: 10 mA at 6 V DC for relay outputs Maximum switching current: Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load; Relay outputs: 2 A at 250 V AC AC-15 cos phi = 0.5 and L/R = 20 ms inductive load Maximum switching voltage: 440 V relay outputs Display type: 1 LED (green) for starter powered up; 1 LED (yellow) for nominal voltage reached Tightening torque: 1.9…2.5 N.m; 0.5 N.m Electrical connection: 4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit; Screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit; 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuit; Screw connector - rigid 2 0.5...1 mm² 17 AWG control circuit; Screw connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit; 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit; Screw connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit; 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuit; 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit; Screw connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit Marking: CE Operating position: Vertical +/- 10 degree Height: 314 mm Width: 45 mm Depth: 170 mm Product weight: 0.49 kg Power range: 7…11 kW at 200…240 V 3 phases; 15…25 kW at 380…440 V 3 phases Motor starter type: Soft starter Electromagnetic compatibility: Conducted and radiated emissions level B conforming to CISPR 11; Conducted and radiated emissions level B conforming to IEC 60947-4-2; Damped oscillating waves level 3 conforming to IEC 61000-4-12; Electrostatic discharge level 3 conforming to IEC 61000-4-2; EMC immunity conforming to EN 50082-1; EMC immunity level B conforming to EN 50082-2; Harmonics level 3 conforming to IEC 1000-3-2; Harmonics level 3 conforming to IEC 1000-3-4; Immunity to electrical transients level 4 conforming to IEC 61000-4-4; Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3; Voltage/current impulse level 3 conforming to IEC 61000-4-5; Conducted and radiated emissions level 3 conforming to IEC 61000-4-6; Immunity to conducted interference caused by radio-electrical fields level 4 conforming to IEC 61000-4-11 Standards: EN/IEC 60947-4-2 Product certifications: UL; CCC; CSA; C-Tick IP degree of protection: IP20 Pollution degree: 2 conforming to EN/IEC 60947-4-2 Vibration resistance: 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to EN/IEC 60068-2-27 Relative humidity: 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 Ambient air temperature for operation: -10…40 °C (without derating); 40…50 °C (with current derating of 2 % per °C) Ambient air temperature for storage: -25…70 °C conforming to EN/IEC 60947-4-2 Operating altitude: 1000 m with current derating of 2.2 % per additional 100 m Number of Units in Package 1: 1 Number of Units in Package 2: 14 Warranty (in months): 18 EAN: 3389110667127

HS Code

8537.10

• EAN 3389110667127
• MPN ATSU01N232LT
