Schneider Electric PanelSeT SF/SM canopy - 800X300 mm NSYSC830
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSC830 Rain hood 8X3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSC830
- EAN / GTIN
- 3606485131290
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Canopy
- Application
- Multi-purpose
- Range compatibility
- PanelSeT SM
- For enclosure nominal dimensions
- -
- Mounting location
- On top of enclosure
- Device composition
- 1 canopy; fixing elements; drilling template
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - roof drilled holes location
- Height
- 85 mm
- Width
- Nominal: 800 mm; Real: 807 mm
- Depth
- Nominal : 300 mm; Real : 325 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.000 cm
- Package 1 Width
- 34.000 cm
- Package 1 Length
- 82.000 cm
- Package 1 Weight
- 5.564 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 30
- Package 2 Height
- 113.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 180.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- RAL-number
- 7035
- With cable entry
- No
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building depth
- 300 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- Yes
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- Yes
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131290
- SAP 1000089729
- Code 8915086
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 200V AC 50/60Hz coil, snap-in terminals LC1D09AL7
Schneider Electric
Schneider Electric Mechanical interlocking, MasterPact MTZ1 fixed, cable interlocking, 1 adaptation fixture kit, spare part LV833200SP
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 32V AC standard coil, snap-in terminals CAD50AC7
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 480V AC standard coil, snap-in terminals CAD50AT7
Schneider Electric
Mounting plate f/box 256X206
NSYPMD2520
Schneider Electric
Schneider Electric Monobloc perforated plates H1200XW800MM with universal perforations 11X26MM NSYMR128
Schneider Electric
Control desk 10X6X4 (NSYSD6)
Schneider Electric

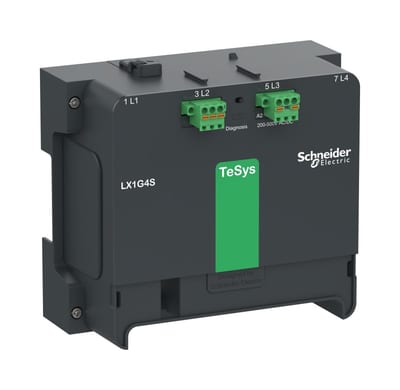

Coil 48-130V Adv 4P G265-330
