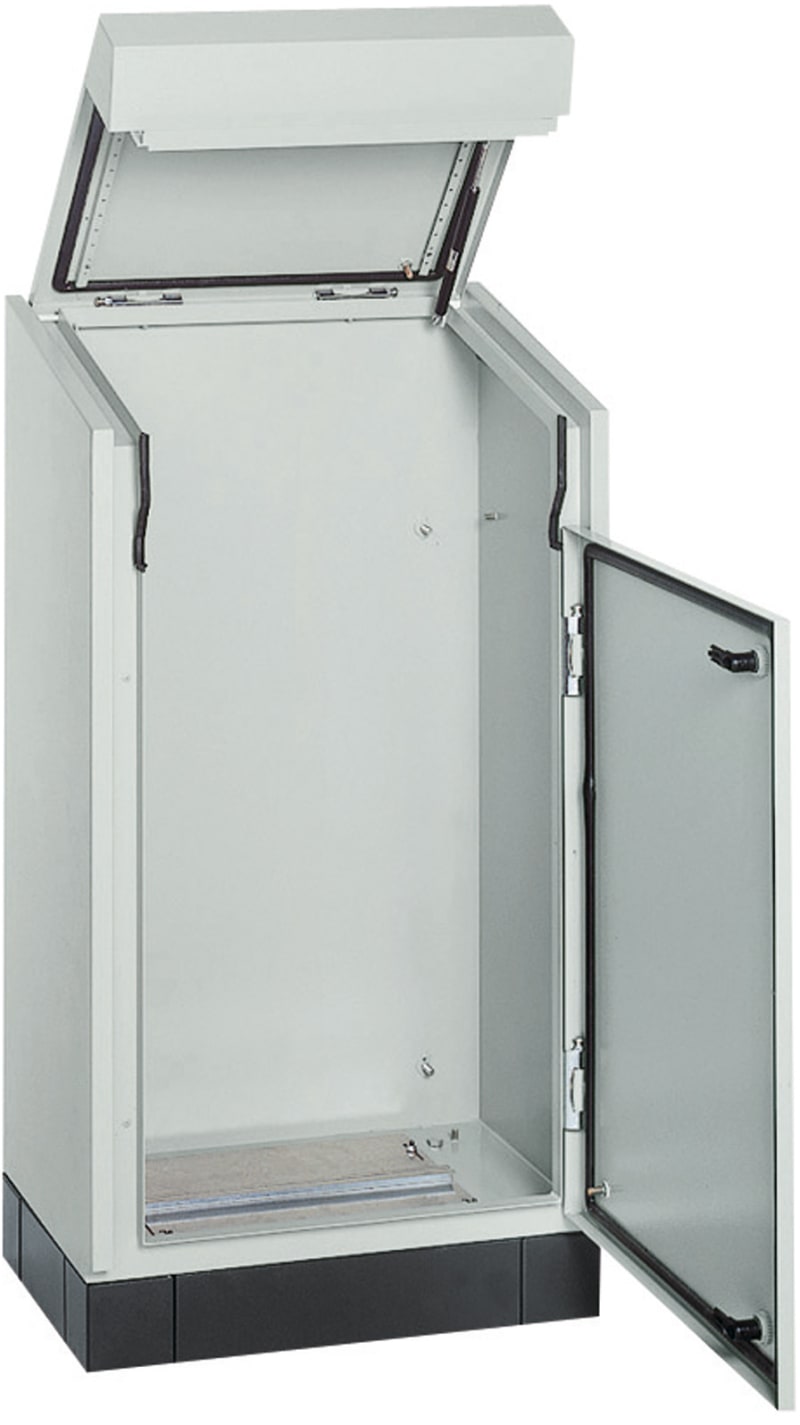

Control desk 10X6X4 (NSYSD6)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSD6 Control desk 10X6X4.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSD6
- EAN / GTIN
- 3606480154409
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SD
- Enclosure type
- Multi-purpose
- Category
- Monobloc control desk
- Nominal height
- 1000 mm
- Nominal width
- 600 mm
- Nominal depth
- 466 mm
- Product installation
- Floor-standing
- Device composition
- 1 structure; 1 door; 2 lock: door; 4 adjustment rail; 1 cable gland plate; 2 pneumatic stay: desk lid
- Body type
- Single piece structure folded and welded
- Door type
- Plain
- Number of doors
- Front: 1 door(s)
- Door opening side
- Reversible 120 ° door
- Lock type
- 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- 1 entry plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Desk lid by hinges; Cable gland plate by clipping screws
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- thickness
- 1.5 mm
- Standards
- IEC 62208
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 50.000 cm
- Package 1 Width
- 60.000 cm
- Package 1 Length
- 116.000 cm
- Package 1 Weight
- 42.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 4
- Package 2 Height
- 130.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 213.000 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Colour
- Grey
- Width
- 600 mm
- Height
- 1000 mm
- Depth
- 466 mm
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Component of the desk system
- Base unit
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480154409
- SAP 1000089743
- Code 8883471
Product Documentation
More from Schneider Electric
Schneider Electric
Coil 48-130V Adv 4P G265-330
LX1G4REHEA
Schneider Electric
Schneider Electric standard motor mechanism module (MCH), fixed ComPact NS630B to NS1600, 48/60 VDC, 48 VAC 50/60 Hz
33691
Schneider Electric
Floor-Standing Cabinet 12X10X3 M.PL.
NSYSM1210302DP
Schneider Electric
Mounting Plate TELEQ. 225X1000
NSYSTMP22100
Schneider Electric

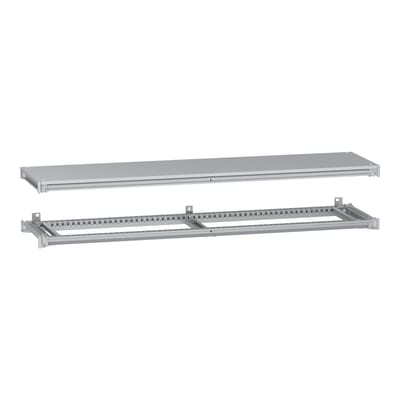

Upper+lower frame SFN 1600X400
NSYSFNC164
Schneider Electric

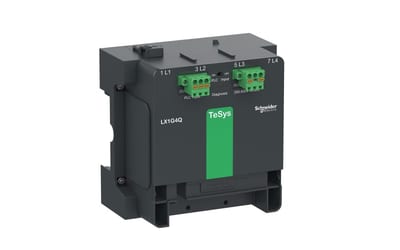

Coil 24-48V Adv 4P G115-225
LX1G4QBEEA
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 220V AC 50/60Hz coil, snap-in terminals LC1D09AM7
Schneider Electric

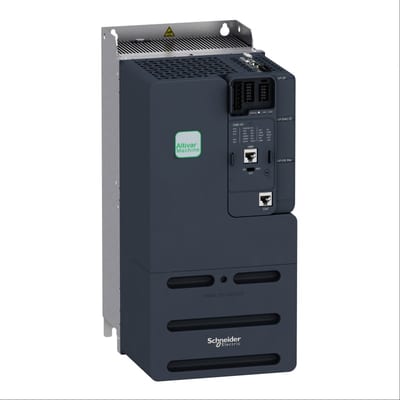

Schneider Electric variable speed drive - 22KW- 400V - 3 phases - ATV340 ATV340D22N4
