Upper+lower frame SFN 1600X400
Pricing
Request a quote
We reply within 24 hours
Product Description

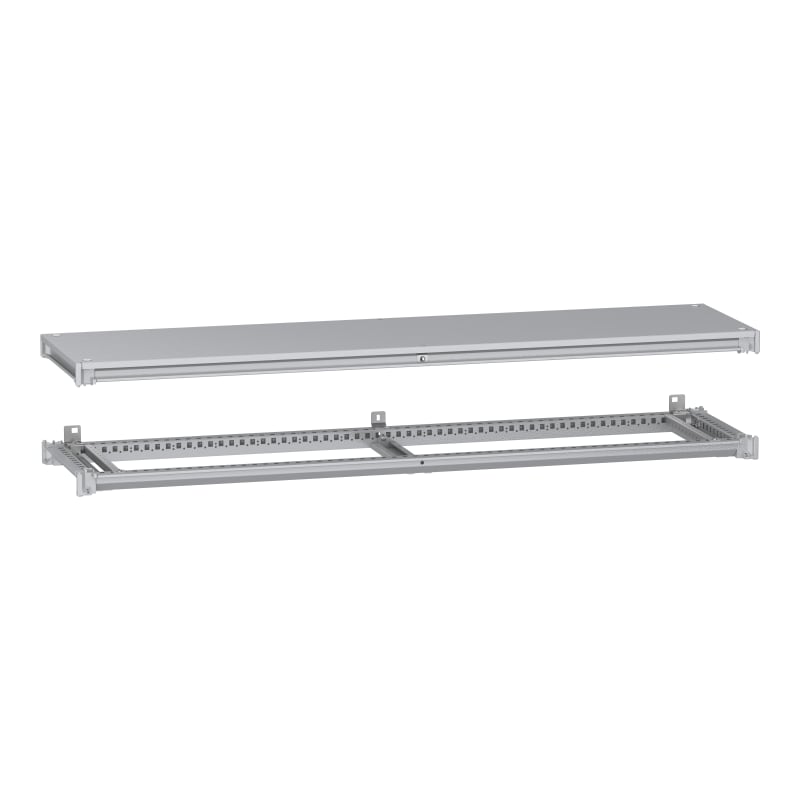

Schneider Electric NSYSFNC164 Upper and lower frame, PanelSeT SFN, 1600x400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNC164
- EAN / GTIN
- 3606486104163
- Sales unit
- pcs
- Dimensions
- 1600×400 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Application
- Multi-purpose
- Product or component type
- Framework kit
- For enclosure nominal dimensions
- - H: 2000 mm W: 1600 mm D: 400 mm
- Mounting location
- Top of vertical uprights; Bottom of vertical uprights
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 bottom frame; 1 roof; 1 top frame
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - each corner of enclosure location
- Height
- 110 mm
- Width
- 1600 mm
- Depth
- 400 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building width
- 1600 mm
- Suitable for enclosure building depth
- 400 mm
- Max. load capacity
- 1500 kg
- RAL-number
- 7035
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104163
- SAP 1200698239
- Code 83799736
Product Documentation
More from Schneider Electric
Schneider Electric
Coil 24-48V Adv 4P G115-225
LX1G4QBEEA
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 220V AC 50/60Hz coil, snap-in terminals LC1D09AM7
Schneider Electric
Schneider Electric variable speed drive - 22KW- 400V - 3 phases - ATV340 ATV340D22N4
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 100V DC standard coil, snap-in terminals CAD32AKD
Schneider Electric
Mounting Plate 1000X1000 (NSYMF1010)
Schneider Electric
Selector switch flush for LED 3 pos green (ZB4FK1333)
Schneider Electric

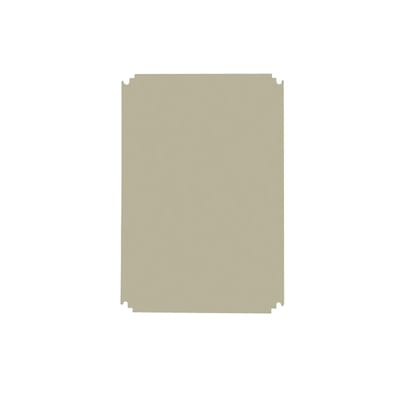

Polyester mounting plate 1000X800
NSYMPP108
Schneider Electric

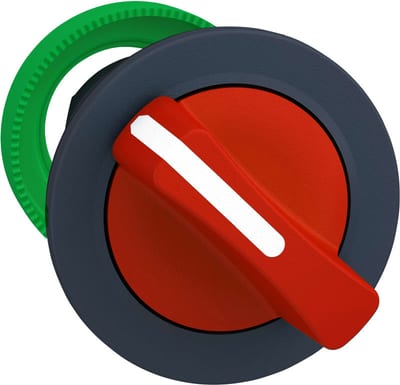

Schneider Electric flush mounted red selector switch head 2 pos return right to left ZB5FD404
