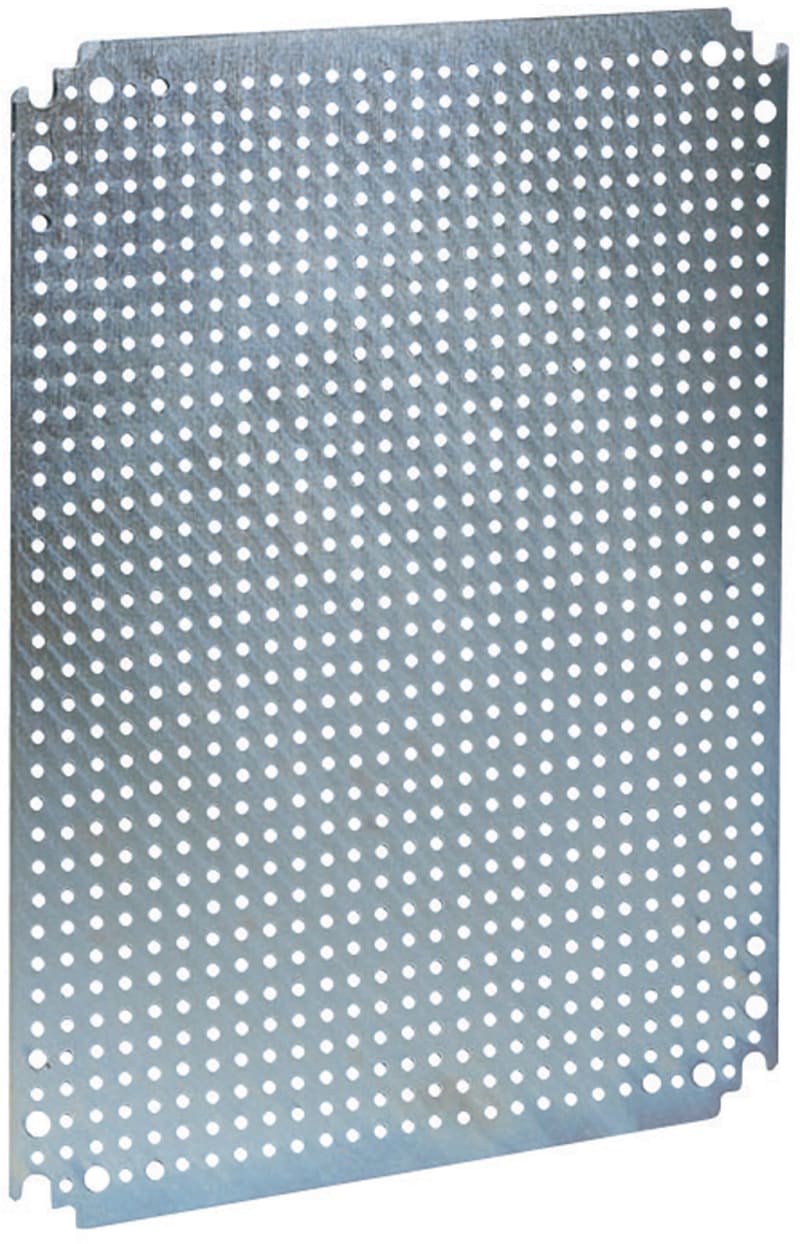

Mounting Plate 1000X1000 (NSYMF1010)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMF1010 MOUNTING PLATE 1000X1000.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMF1010
- EAN / GTIN
- 3606480182976
- Sales unit
- pcs
- Dimensions
- 1000×1000 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1000 mm W: 1000 mm
- Mounting location
- Direct fixing on backstuds; Step slide
- Mounting plate description
- Microperforated
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM PLM
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Permanent permissible load
- 225.6 kg S3D, CRN, S3X enclosures; 135.4 kg PLM enclosure
- Maximum load
- 250 kg S3D, CRN, S3X enclosures; 150 kg PLM enclosure
- Height
- 950 mm
- Width
- 950 mm
- Surface and useful surface
- 90.3 dm²
- thickness
- 2.5 mm
- Product weight
- 17.826 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 25
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480182976
- SAP 1000470385
- Code 8924042
