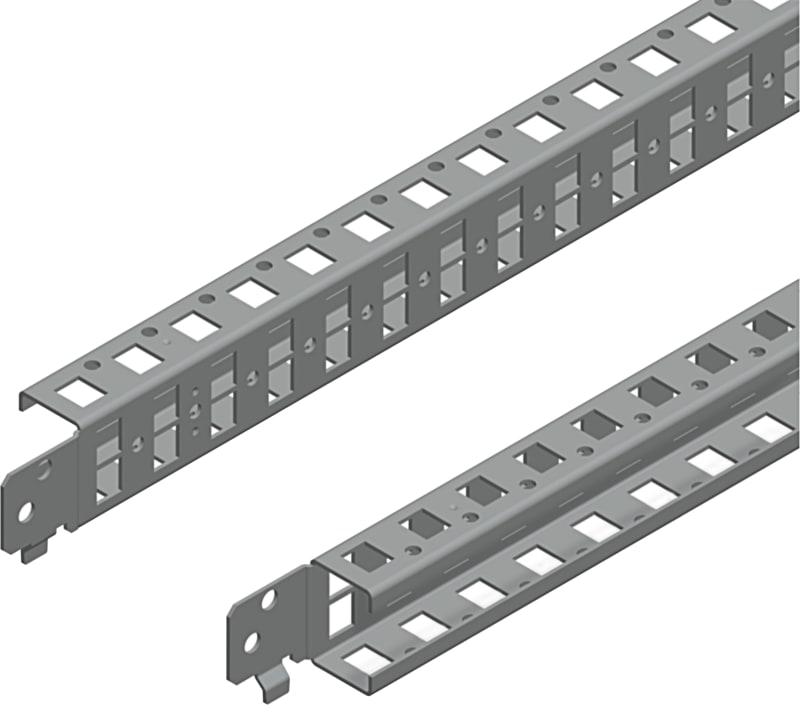

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W500MM, 1 row, set of 2 NSYSQCR4050
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSQCR4050 Cross-arm 500/1.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSQCR4050
- EAN / GTIN
- 3606485132655
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Quick cross rails
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- Between cross rails; On structure of enclosure
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws; Clipped - on structure location
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 1
- Maximum load
- 60 kg
- Height
- Nominal: 500 mm; Useful: 410 mm
- Width
- 40 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 47.000 cm
- Package 1 Weight
- 798.000 g
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 400
- Package 2 Height
- 100.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 340.000 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 500 mm
- Suitable for enclosure building depth
- 500 mm
- Max. load capacity
- 60 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132655
- SAP 1000090114
- Code 8924807
Product Documentation
