Rain hood 12X5 (NSYSC1250)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSC1250 Rain hood 12X5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSC1250
- EAN / GTIN
- 3606485131146
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Canopy
- Application
- Multi-purpose
- Range compatibility
- PanelSeT SM; PanelSeT SF
- For enclosure nominal dimensions
- -
- Mounting location
- On top of enclosure
- Device composition
- 1 canopy; fixing elements; drilling template
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - roof drilled holes location
- Height
- 85 mm
- Width
- Nominal: 1200 mm; Real: 1207 mm
- Depth
- Real : 525 mm; Nominal : 500 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 55.000 cm
- Package 1 Length
- 123.000 cm
- Package 1 Weight
- 11.596 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 12
- Package 2 Height
- 105.000 cm
- Package 2 Width
- 110.000 cm
- Package 2 Length
- 123.000 cm
- Package 2 Weight
- 152.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- RAL-number
- 7035
- With cable entry
- No
- Suitable for enclosure building width
- 1200 mm
- Suitable for enclosure building depth
- 500 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- Yes
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- Yes
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131146
- SAP 1000089718
- Code 8840282
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive, Altivar 212, 75kW, 100hp, 480V, 3 phases, with EMC class C2, IP55 ATV212WD75N4
Schneider Electric
Schneider Electric Projecting push button head 40mm, Harmony XB5, plastic, red, 22mm, spring return, marked STOP ZB5AL434
Schneider Electric
Schneider Electric Flush mounted push button head, Harmony XB4, metal, yellow, 30mm, spring return, unmarked ZB4FA5
Schneider Electric
Schneider Electric PanelSeT SF/SM canopy - 1200X300 mm NSYSC1230
Schneider Electric
Schneider Electric TeSys F - contactor coil - LX1FG - 24 V AC 50 Hz LX1FG024
Schneider Electric

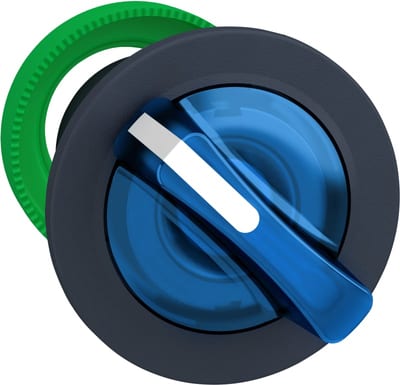

Selector switch flush for LED 2 pos blue (ZB5FK1463)
Schneider Electric

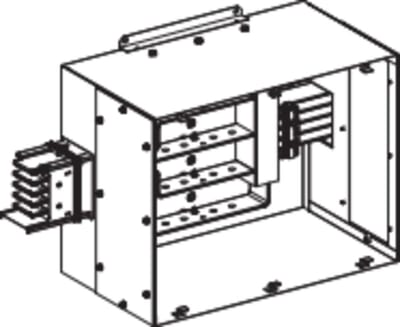

Center feed 500-630A
KSA630ABT4
Schneider Electric

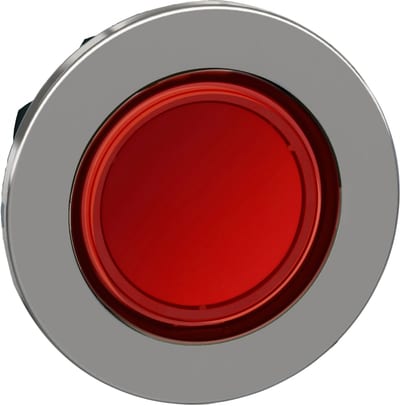

Push-button flush red f/label (ZB4FA48)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSC1250?
- NSYSC1250 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSC1250.
- What is the HS code for NSYSC1250?
- The customs tariff (HS) code for NSYSC1250 is 7326.90.
- Who manufactures NSYSC1250?
- NSYSC1250 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSC1250?
- Yes — the NSYSC1250 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSC1250?
- The minimum order quantity is 1.
- Is NSYSC1250 available?
- Yes — NSYSC1250 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
