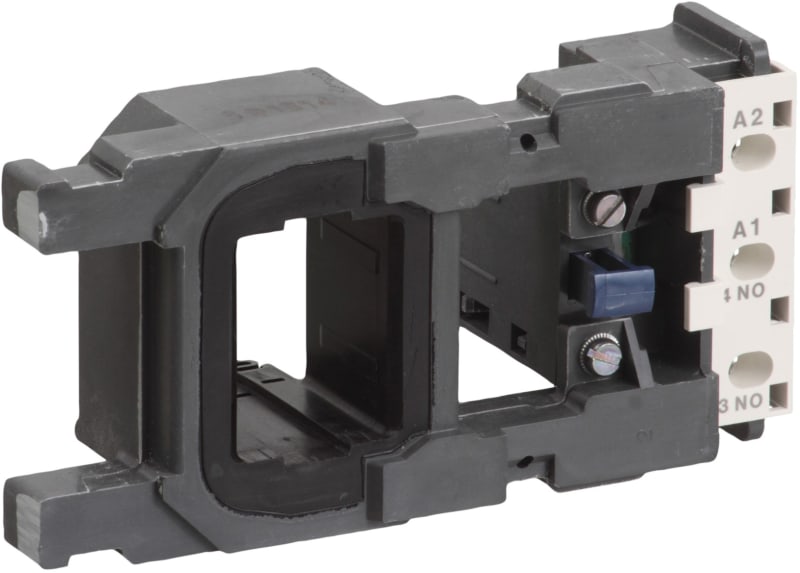

Schneider Electric TeSys F - contactor coil - LX1FG - 24 V AC 50 Hz LX1FG024

Schneider Electric LX1FG024 coil 24V 50HZ LC1F185-F225.

Manufacturer part number (MPN)

LX1FG024

EAN / GTIN

3389110083200

Sales unit

pcs

Package quantity

18 pcs

Voltage

24 V

Range

TeSys

Product or component type

Contactor coil

Device short name

LX1FG

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F225; LC1F185

Control circuit type

AC at 50 Hz

[Uc] control circuit voltage

24 V AC 50 Hz

Inductance of closed circuit

0.03 H

Average resistance

0.18 Ohm at 20 °C

Operating time

20...35 ms closing; 7...15 ms opening

Mechanical durability

10 Mcycles

Maximum operating rate

2400 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.35...0.55 Uc 50/60 Hz (at 55 °C); Operational: 0.85...1.1 Uc 50/60 Hz (at 55 °C)

Inrush power in VA

805 VA 50 Hz cos phi 0.3 (at 20 °C)

Hold-in power consumption in VA

55 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

18…24 W at 50 Hz

Ambient air temperature for operation

-5…55 °C

Product weight

0.55 kg

Number of Units in Package 1

1

Number of Units in Package 2

18

Number of Units in Package 3

144

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

24 V

Voltage type for actuating

AC

Country of origin

Czechia

HS Code

8504.50

• EAN 3389110083200
• SAP 1000075975
• Code 8754346
