Product Description

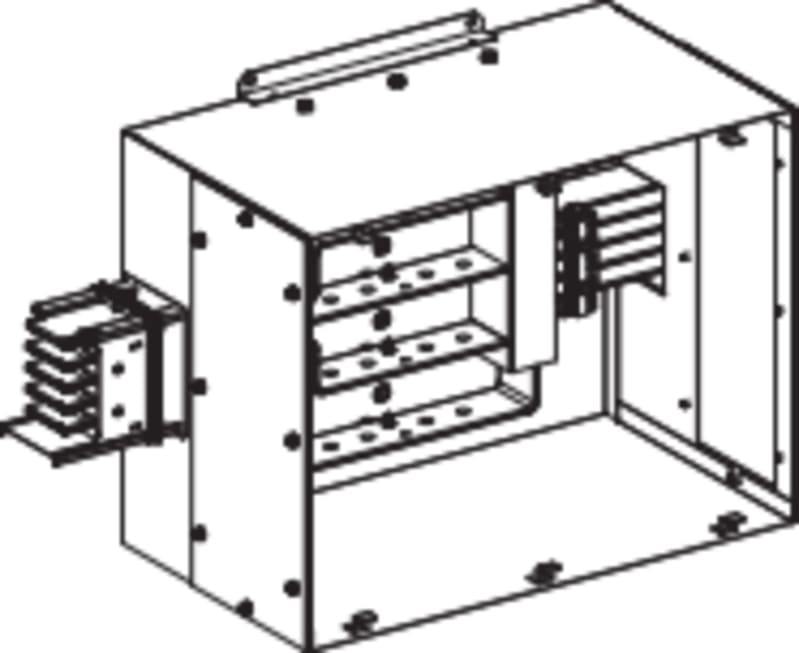

Schneider Electric KSA630ABT4 Center feed 500-630A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA630ABT4
- EAN / GTIN
- 3606480005053
- Sales unit
- pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Offer type
- Classic
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 630 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Central
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 240 mm² flexible; Lug for 300 mm² rigid
- Width
- 1001 mm
- Depth
- 386 mm
- Height
- 513 mm
- Product weight
- 32 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 56.000 cm
- Package 1 Width
- 64.000 cm
- Package 1 Length
- 125.700 cm
- Package 1 Weight
- 37.210 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 1001 mm
- Degree of protection (IP)
- IP55
- Power supply position
- Centre
- Rated voltage AC 50 Hz
- 690 V
- Rated current AC 50 Hz
- 630 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005053
- SAP 1200721766
- Code 83832418
Product Documentation
