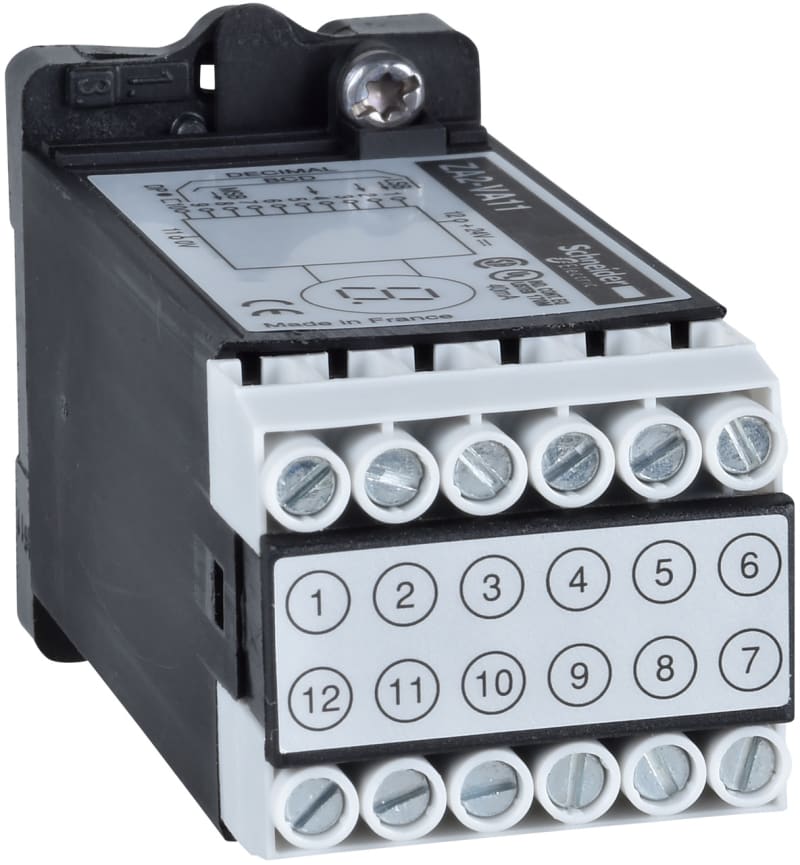

7 SEGM.Display Ø22,BCD+DECIMAL

Schneider Electric ZA2VA11 7 Segm.Display Bottom BCD+DeciMAl.

Manufacturer part number (MPN)

ZA2VA11

EAN / GTIN

3389110648966

Sales unit

pcs

Package quantity

30 pcs

Diameter

22 mm

Range of product

Harmony

Product or component type

Digital display body

[Us] rated supply voltage

24 V DC

Connections - terminals

Screw connectors, 0.5 x 2.5 mm²

Mounting support

panel

Device mounting

Fixing hole - diameter: 22.3 mm

Electronic decoding

Decimal + BCD

Supply voltage limits

13…30 V

Current consumption

<= 36 mA at 30 V; <= 40 mA at 24 V

Protection type

Reverse polarity protection

Logic input

Positive

Voltage state 0 guaranteed

-30...5 V

Voltage state 1 guaranteed

13...30 V

Current state 0 guaranteed

<= 1.4 mA

Current state 1 guaranteed

4...9.5 mA

Product weight

0.057 kg

Product certifications

UL; CSA

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Vibration resistance

10 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

180 gn 11 ms conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 60536; Class II conforming to NF C 20-030

IP degree of protection

IP65 conforming to IEC 60529; IP65 conforming to NF C 20-010

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

FR

Warranty (in months)

18

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

No

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

24 V

Rated voltage Ue at AC 60 Hz

24 V

Rated voltage Ue at DC

24 V

Voltage type for actuating

AC/DC

HS Code

8538.90
