WALL-Mount Cabinet S3D without PL 6X6X3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D6630 Wall-mount cabinet S3D Without Pl 6X6X3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D6630
- EAN / GTIN
- 3606480159183
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 600 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL; cUL; GL; BV; DNV
- Product weight
- 16.57 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 35.000 cm
- Package 1 Width
- 61.500 cm
- Package 1 Length
- 62.000 cm
- Package 1 Weight
- 16.500 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 201.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 214.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 600 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159183
- SAP 1000089627
- Code 8840043
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSeT SF/SM 19" fixed rack - 1200 mm NSYRCK24
Schneider Electric
HOVEDPOLER, 3 pcs (LA5FJ431)
Schneider Electric
Schneider Electric electric motor MCH, MasterPact MTZ2/MTZ3, spare part, 440/480 V AC 50/60 Hz LV847897SP
Schneider Electric
Schneider Electric SFX 304L stainless suitable enclosure, H2000XW1200XD600MM, Scotch Brite® finish. NSYSFX201260
Schneider Electric
Push-button flush black with text (ZB5FA234)
Schneider Electric

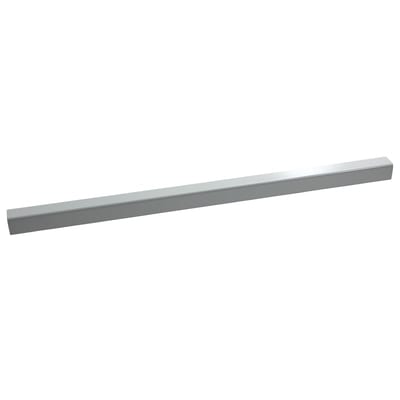

83282 PIPE 1,5 Meter 50X50
NSYCMT5015
Schneider Electric

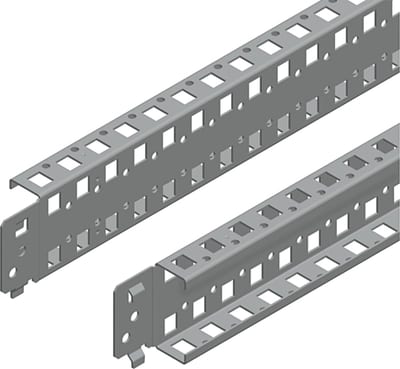

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W600MM, 2 rows, set of 2 NSYSQCR6560
Schneider Electric

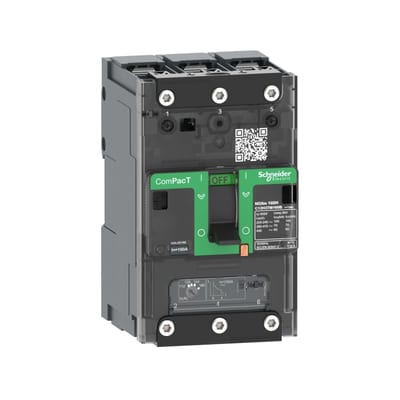

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 3 poles, TMD trip unit 40A, lugs/busbars C11B3TM040B
