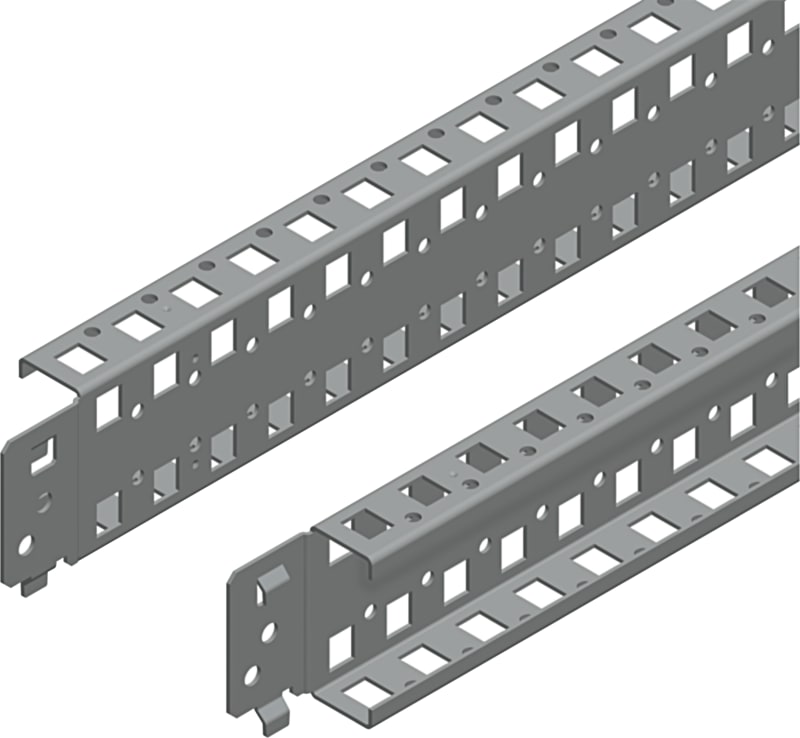

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W600MM, 2 rows, set of 2 NSYSQCR6560
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSQCR6560 Cross-arm 600/2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSQCR6560
- EAN / GTIN
- 3606485132723
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Quick cross rails
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- On structure of enclosure; Between cross rails
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws; Clipped - on structure location
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 2
- Maximum load
- 80 kg
- Height
- Nominal: 600 mm; Useful: 510 mm
- Width
- 65 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 270
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building depth
- 600 mm
- Max. load capacity
- 80 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132723
- SAP 1000090121
- Code 8582656
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 3 poles, TMD trip unit 40A, lugs/busbars C11B3TM040B
Schneider Electric
Schneider Electric PanelSet S3DB H600XW400XD150. IP66, IK10, RAL7035. No NSYS3DB6415
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1600MM, 1 row, set of 2 NSYSUCR40160
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 440A, advanced version, 48…130V wide band AC/DC coil LC1G3304EHEA
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX630F DC, 36KA/750VDC, 3 poles, TM-DC trip unit 600A C63F3TM600D
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(37kW)/400...440V(75kW)/500V(90kW) ATS22C14S6
Schneider Electric
Top plate IP55 PrismaSeT P B300 D400
LVS08453
Schneider Electric
Prefab.Connection MTZ1 1600A/LGY 4P uttrekkb.
LVS04492
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSQCR6560?
- NSYSQCR6560 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSQCR6560.
- What is the HS code for NSYSQCR6560?
- The customs tariff (HS) code for NSYSQCR6560 is 7326.90.
- Who manufactures NSYSQCR6560?
- NSYSQCR6560 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSQCR6560?
- Yes — the NSYSQCR6560 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSQCR6560?
- The minimum order quantity is 1.
- Is NSYSQCR6560 available?
- Yes — NSYSQCR6560 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
