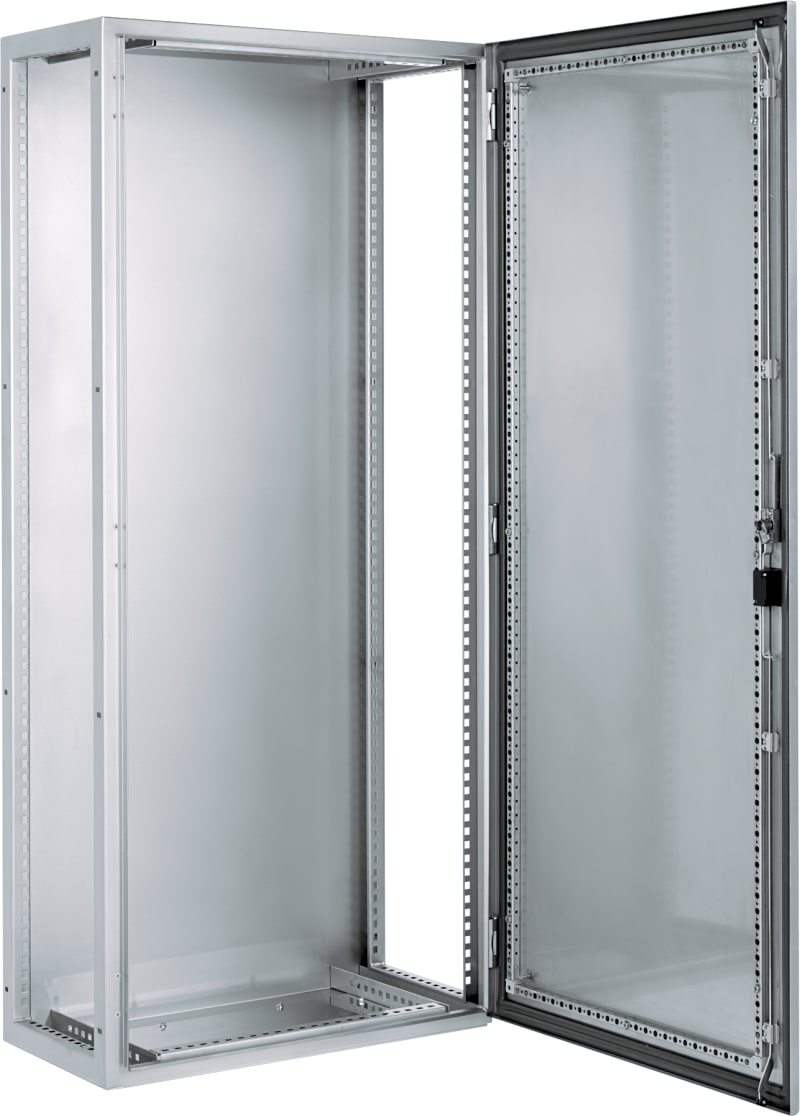

Schneider Electric SFX 304L stainless suitable enclosure, H2000XW1200XD600MM, Scotch Brite® finish. NSYSFX201260
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFX201260 SFX 304L 2000x1200x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFX201260
- EAN / GTIN
- 3606480155666
- Sales unit
- pcs
- Dimensions
- 2000×1200×600
- Range
- PanelSeT
- Product name
- PanelSeT SFX
- enclosure type
- Multi-purpose
- category
- Suitable enclosure
- nominal height
- 2000 mm
- nominal width
- 1200 mm
- nominal depth
- 600 mm
- product installation
- Floor-standing
- Device composition
- 1 structure; 2 door with reinforcement frame; 1 locking system with handle: door; 4 mounting plate bracket; 1 cable gland plate
- Body type
- Single piece structure folded and welded; Rear panel integrated
- Door type
- Plain
- Number of doors
- Front face: 2 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, handle with 5 mm double-bar insert
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Plain
- Accessibility for operation
- Front; Side
- Removable parts
- Door by hinges; Mounting plate bracket by screws; Cable gland plate by clips
- Material
- Structure and door: stainless steel 304L; Handle: zamak; Hinge: stainless steel
- Surface finish
- Enclosure: Scotch-Brite® brushed; Handle: painted
- Product weight
- 113.5 kg
- Standards
- IEC 62208
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Corrosive; Specific hygiene
- Number of Units in Package 1
- 1
- Country of origin
- BG
- Warranty (in months)
- 18
- Colour
- Stainless steel
- Width
- 1200 mm
- Height
- 2000 mm
- Depth
- 600 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Stainless steel 316 (V4A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- No
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480155666
- SAP 1000469982
- Code 8104380
