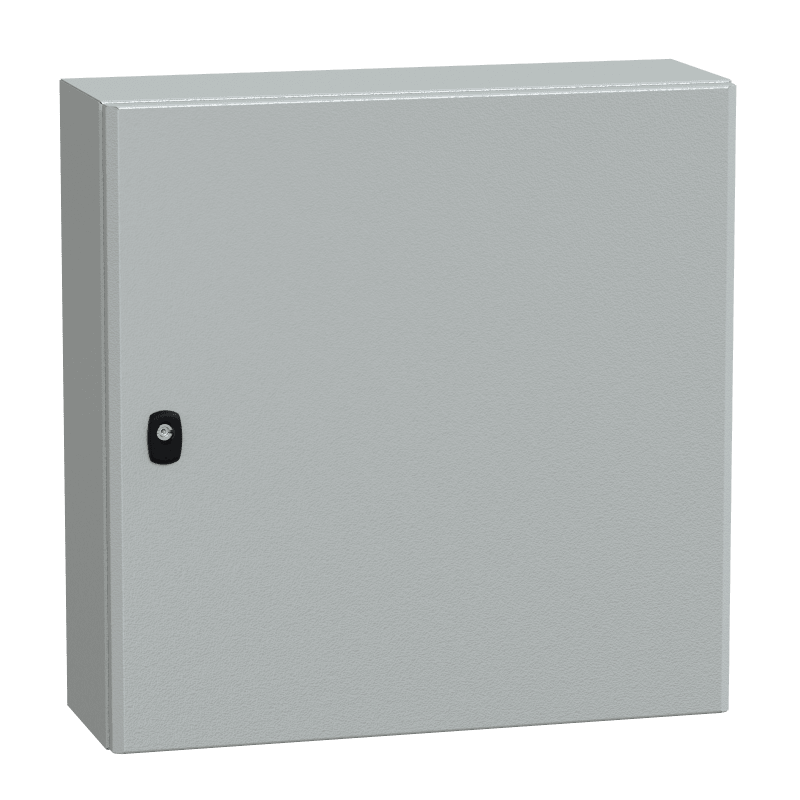

Schneider Electric NSYS3D6620P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X600X200MM, IP66, IK10
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYS3D6620P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X600X200MM, IP66, IK10 is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Range: PanelSeT; Product name: PanelSeT S3D; Application: Multi-purpose; Enclosure nominal height: 600 mm; Enclosure nominal width: 600 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D6620P
- EAN / GTIN
- 3606480159237
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 600 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 200 mm
- Door type
- Plain
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 mounting plate; 1 door with lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL; BV; DNV; GL; cUL
- Product weight
- 18 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24.500 cm
- Package 1 Width
- 61.500 cm
- Package 1 Length
- 62.000 cm
- Package 1 Weight
- 18.390 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 18
- Package 2 Height
- 199.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 350.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 600 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159237
- SAP 1000089622
- Code 8581962
