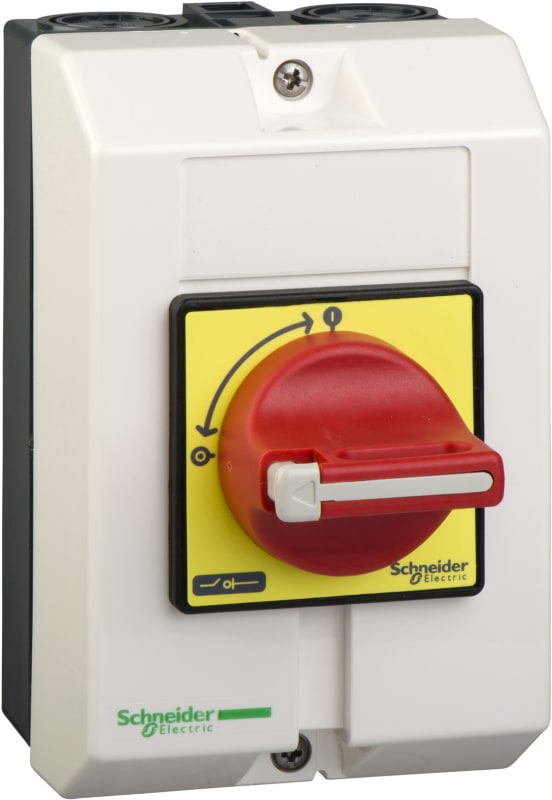

Schneider Electric TeSys Vario enclosed, emergency switch disconnector, 32A, IP65 VCF2GE

Schneider Electric VCF2GE enclosed emergency stop switch, 32 A.

Manufacturer part number (MPN)

VCF2GE

EAN / GTIN

3389110194104

Sales unit

pcs

Package quantity

7 pcs

Rated current

32 A

Range

TeSys

Product name

TeSys VARIO

Device short name

VCF

Product or component type

Enclosed emergency stop switch disconnector

Performance level

High performance

Poles description

3P

Control type

Rotary handle

Handle colour

Red

Handle front plate colour

Yellow

Rotary handle padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

[Ue] rated operational voltage

690 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ithe] conventional enclosed thermal current

32 A

[Ie] rated operational current

29 A (AC-23A) at 400 V

Rated operational power in W

15 kW at 400 V (AC-23); 11 kW at 400 V (AC-3)

Intermittent duty class

30

Making capacity ( I rms)

400 A at 400 V AC-21A; 400 A at 400 V AC-22A; 400 A at 400 V AC-23A

[Icm] rated short-circuit making capacity

1 kA at 400 V at Ipeak

[Icw] rated short-time withstand Rms current

480 A at 400 V duration: 1 s

Rated conditional short-circuit current

10 kA at 400 V - associated fuse 50 A aM; 10 kA at 400 V - associated fuse 50 A gG

Breaking capacity

320 A at 400 V (AC-21A); 320 A at 400 V (AC-22A); 320 A at 400 V (AC-23A)

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-21; 30000 cycles DC-1...5

Environmental characteristic

Standard environment

Suitability for isolation

Yes

Connections - terminals

Screw clamp terminals10 mm² - solid; Screw clamp terminals6 mm² - flexible - with cable end

Tightening torque

2.1 N.m - on screw clamp terminals

Fire resistance

960 °C conforming to IEC 60595-2-1

handle front plate dimension

60 x 60 mm

Height

146 mm

Width

90 mm

Depth

131 mm

Product weight

0.5 kg

Standards

IEC 60204; IEC 60947-4-1

Protective treatment

TC

IP degree of protection

IP65 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Number of Units in Package 1

1

Number of Units in Package 2

7

Number of Units in Package 3

56

Country of origin

CZ

Warranty (in months)

18
