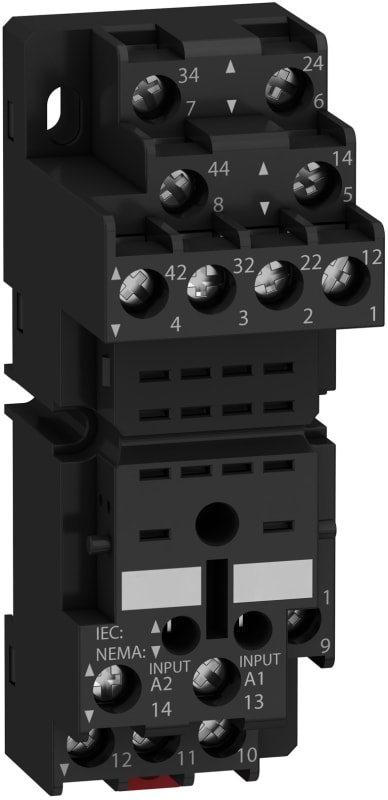

Schneider Electric Socket, mixed contact, relay type RXM2 RXM4, screw clamp terminals, 250 V AC RXZE2M114

Schneider Electric RXZE2M114 Relay plinth with bland term.connector screw terminal & compatible with Plug-in RXM 2CO & 4CO reléer.

Manufacturer part number (MPN)

RXZE2M114

EAN / GTIN

3389119404242

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays; Harmony Timer Relays

Product compatibility

Plug-in relay RXM with 2 C/O contact; Plug-in relay RXM with 4 C/O contact; Plug-in relay REXL with 2 C/O contact; Plug-in relay REXL with 4 C/O contact; Plug-in relay 782H with 4 C/O contact

Device short name

RXZ

[Ith] conventional free air thermal current

10 A

Product or component type

Socket

Contacts type and composition

4 C/O

[Ue] rated operational voltage

< 250 V conforming to IEC; < 300 V conforming to UL

Connections - terminals

Screw clamp terminals, 1 x 0.34...1 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw clamp terminals, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) solid without cable end; Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Shape of pin

Flat

Tightening torque

< 1 N.m for M3 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

Wire stripping length

8 mm

Contact terminal arrangement

Mixed

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

30 mm

Product weight

0.051 kg

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

2500 V

Standards

IEC 61984

Product certifications

UL; CSA; Lloyd's

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

200

Country of origin

CN

Warranty (in months)

18

HS Code

8536.90

• EAN 3389119404242
• SAP 1000006248
• Code 8473400
