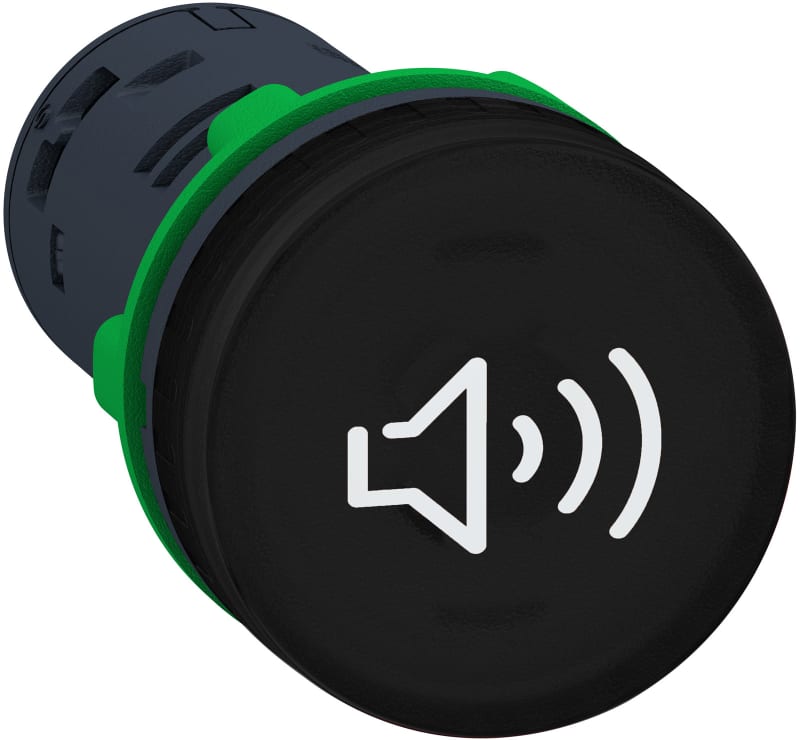

Schneider Electric XB5KSB Complete buzzer, plastic, Ø22, continuous or intermittent tone, 24 V AC/DC
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric XB5KSB Complete buzzer, plastic, Ø22, continuous or intermittent tone, 24 V AC/DC is listed under Electrical Components. Sales unit: pcs; Package quantity: 88 pcs; Range of product: Harmony XB5; Product or component type: Annunciator; Bezel material: Dark grey plastic; Mounting diameter: 22.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XB5KSB
- EAN / GTIN
- 3389110102666
- Sales unit
- pcs
- Package quantity
- 88 pcs
- Range of product
- Harmony XB5
- Product or component type
- Annunciator
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22.5 mm
- Head type
- Standard
- Cap/operator or lens colour
- Black
- Supply circuit type
- AC/DC
- Supply frequency
- 50/60 Hz
- Signalling type
- Continuous or intermittent tone
- Noise level
- 90 dB 6.8 kHz 0.1 m +/- 10 %
- Resistance to high pressure washer
- 9000000 Pa at 80 °C, distance : 0.1 m
- Height
- 29 mm
- Width
- 29 mm
- Depth
- 55 mm
- Product weight
- 0.024 kg
- Current consumption
- <= 28 mA
- [Us] rated supply voltage
- 24 V +/- 10 %
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- Electrical shock protection class
- Class II conforming to IEC 60536
- Enclosure Type
- UL type 4X/13
- Standards
- IEC 60947-5-1; IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-1; UL 508; JIS C8201-5-1; JIS C8201-1; IEC 60529; IEC 62262; IEC 50102
- Product certifications
- UL listed; CSA; BV
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.800 cm
- Package 1 Width
- 3.000 cm
- Package 1 Length
- 5.400 cm
- Package 1 Weight
- 28 g
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 88
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 15.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 2.696 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Loudness
- 90 dB
- Voltage type
- AC/DC
- Type of acoustic signal
- Pulse tone/continuous tone
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
- Degree of protection (NEMA)
- 4X, 13
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389110102666
- SAP 1000024139
- Code 8498274
