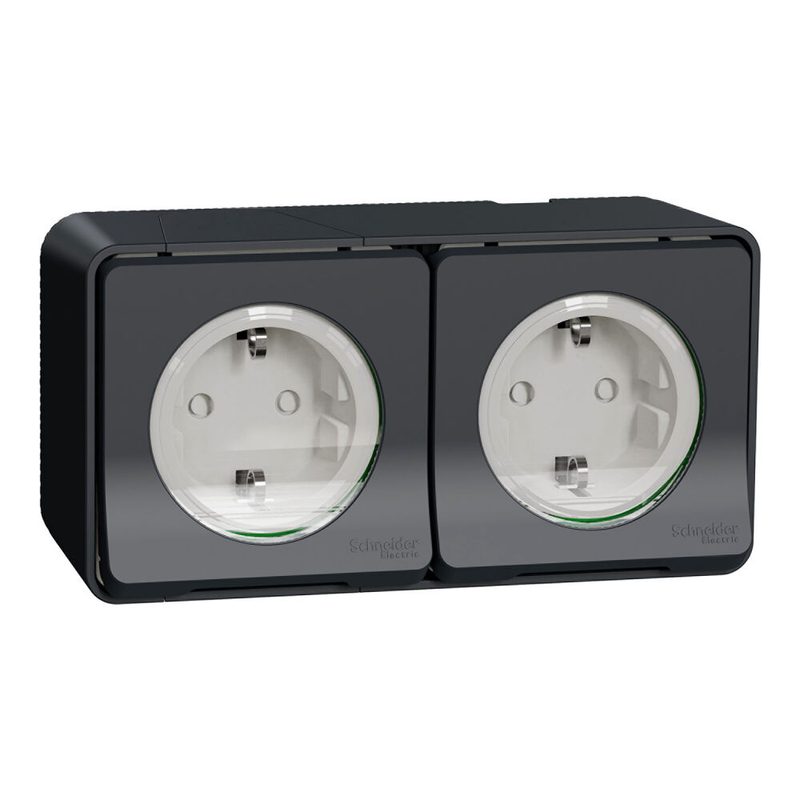

Schneider Electric Double socket-outlet, Mureva Styl, 2P + E with shutters, side earth, 16A, 250V, surface, anthracite MUR36029
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MUR36029 Mureva Styl double socket outlet, surface-mounted, with earth, 16 A, grey (anthracite).
Technical Specifications
- Manufacturer part number (MPN)
- MUR36029
- EAN / GTIN
- 3606480789724
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- Mureva Styl
- Range of product
- Mureva Styl
- Product or component type
- Socket-outlet
- Device presentation
- Complete product
- Outlet poles configuration
- 2P + E
- Outlet standard description
- Side earth
- Outlet standard deviation
- Schuko
- Colour tint
- Anthracite (RAL 7016)
- Device mounting
- Surface
- Socket number
- 2
- Rated current
- 16 A
- [Ue] rated operational voltage
- 250 V AC
- Condition of use
- Indoor/outdoor
- Material
- Brass; PC (polycarbonate); PP (polypropylene)
- fixing mode
- Screws
- Clamping connection capacity
- 1...2.5 mm² for rigid cable(s); 1...2.5 mm² for stranded cable(s); 1...2.5 mm² for flexible cable(s)
- Wire stripping length
- 13 mm
- Cable entry
- Easy valve access diameter: 6…12 mm
- Height
- 76 mm
- Width
- 147 mm
- Depth
- 64 mm
- Chemical and detergent products resistance
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Outlet standard
- CEE 7/3
- surface treatment
- Untreated
- Surface finish
- Matt
- Network frequency
- 50/60 Hz
- Connections - terminals
- Screwless terminals
- Quality labels
- AENOR; EAC
- IP degree of protection
- IP55
- IK degree of protection
- IK08
- Flame retardance
- Self-extinguishing 650 °C conforming to IEC 60695-2-1
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 30
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480789724
- SAP 1200197354
- Code 82138569
