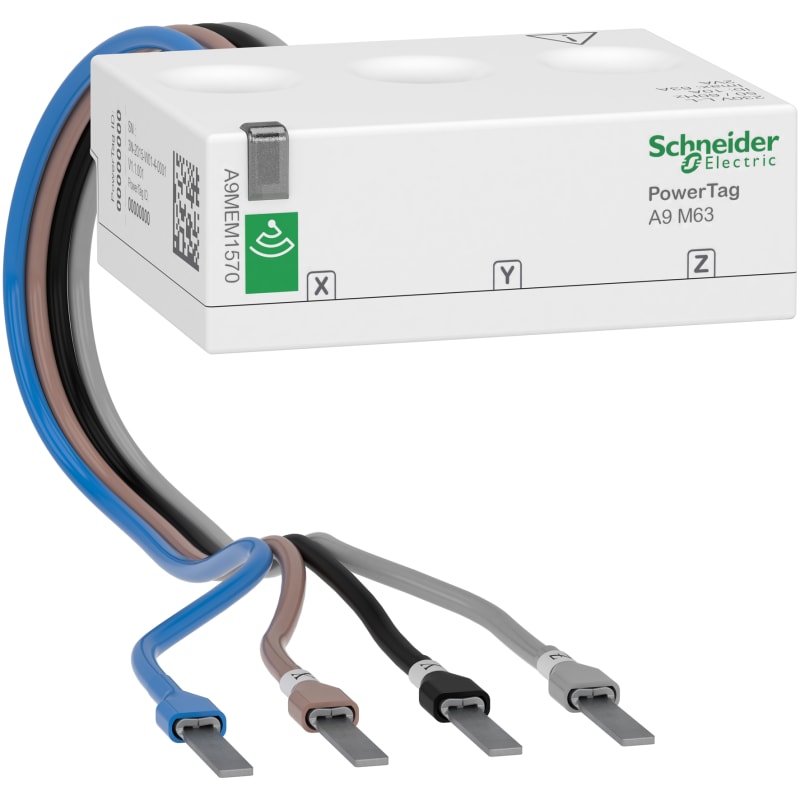

Schneider Electric energy sensor, PowerTag Flex 63A 3P+N top and bottom position A9MEM1570

Schneider Electric A9MEM1570 Acti 9 PowerTag FLEX 1P+N 63A wireless energy meter for mounting on all types of fuses/protection.

Manufacturer part number (MPN)

A9MEM1570

EAN / GTIN

3606481380432

Sales unit

pcs

Package quantity

30 pcs

Rated current

63 A

Number of poles

3P+N

Range of product

PowerLogic

Product name

PowerTag A9 F63

Product or component type

Energy sensor

Poles

3P + N

Maximum current [Imax]

63 A

[Ib] Basic current

10 A

Starting current

40 mA

Saturation current

130 A

Product specific application

Cost allocation; Load monitoring; Overload alarm; Circuit monitoring; Energy management

Concentrator compatibility

EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Harmony Hub; Wiser hub generation 2; Acti9 Smartlink SI B; Acti9 Smartlink SI D; Acti9 PowerTag Link; Acti9 PowerTag Link HD

Application

Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm

Range compatibility

Acti9 Vigi DT40; Acti9 Vigi iC40; Acti9 Vigi iDT40; Acti9 Vigi N40; Acti9 Vigi C40; Acti9 Vigi iC60; Acti9 Acti9 iDD40; Acti9 Acti9 iDD40 XA; Acti9 Acti9 iCV40 XA; Acti9 Vigi iDPN; Acti9 Acti9 iCV40; Acti9 Vigi iTG40; Acti9 Vigi iCG40

Type of measurement

Voltage; Active energy; Active power; Current; Power factor

Accuracy class

Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12

Mounting location

Top or bottom

Mounting support

On circuit breaker

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

Flex

Mounting mode

By screws (terminals)

Electrical connection (voltage sensing & power supply)

Wires with cable end

Cable cross section

1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²

Cable length

0.25 m

supply voltage

220...240 V AC, +/- 20 %, between phase and neutral; 380...415 V AC, +/- 20 %, between phases

Network frequency

50 Hz; 60 Hz

Maximum power consumption

2 VA

Standards

IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1

Product certifications

IEC; DNV Marine

Height

Sensor element: 20 mm

Width

Sensor element: 54 mm

Depth

Sensor element: 46.6 mm

Product weight

40 g

Colour

White (RAL 9003)

Compatibility code

PowerTag A9 P63

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Overvoltage category

III conforming to IEC 61010-1

Measurement category

Category III conforming to IEC 61010-2-030

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK05

Pollution degree

3

Relative humidity

0…95 % at 45 °C conforming to IEC 60721-3-3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311

environmental characteristics

Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use

Warranty (in months)

18

Mounting method

Plug-in technique

Model

Direct measurement

Suitable for

Purchase

Type of indication

None

Max. current (Imax)

63 A

Width in number of modular spacings

3

Type of meter

Electronic

Degree of protection (IP)

IP20

Energy type

Effective power and reactive power

Tariff type

One-tariff

Escapement mechanism

No

Calibrated

Yes

Approval

Domestic

Pulse output

None

Pole type

Four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal current (In)

63 A

Country of origin

Latvia

HS Code

9030.33
