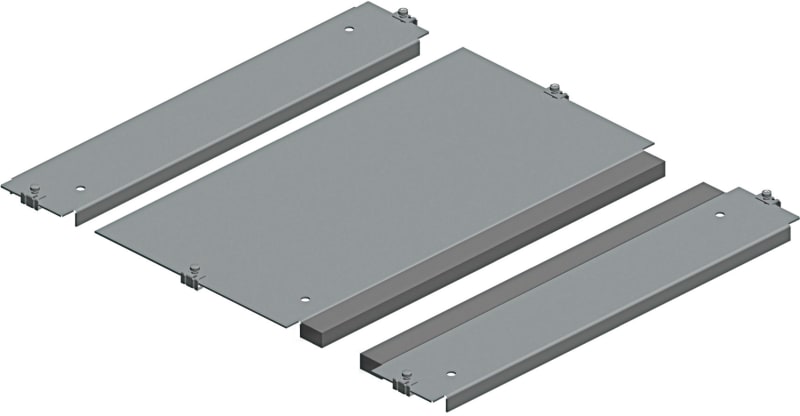

Schneider Electric NSYEC641 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W600 D400MM, fixed by clips
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYEC641 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W600 D400MM, fixed by clips is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Range: PanelSeT; Product or component type: Cable gland plate; Application: Multi-purpose; Range compatibility: PanelSeT SF; Mounting location: Enclosure bottom.
Technical Specifications
- Manufacturer part number (MPN)
- NSYEC641
- EAN / GTIN
- 3606485126241
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Range compatibility
- PanelSeT SF
- Mounting location
- Enclosure bottom
- Cable gland type
- Standard
- Cable entry
- 1 entry
- Device composition
- fixing elements; 1 plate; self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Height
- 30 mm
- Width
- Nominal: 600 mm; Useful: 416 mm
- Depth
- Nominal : 400 mm; Real : 450 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 15.000 cm
- Package 1 Length
- 45.500 cm
- Package 1 Weight
- 2.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 150
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 315.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Surface protection
- Galvanised
- Pre-stamping
- Yes
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126241
- SAP 1000089118
- Code 8881943
Product Documentation
