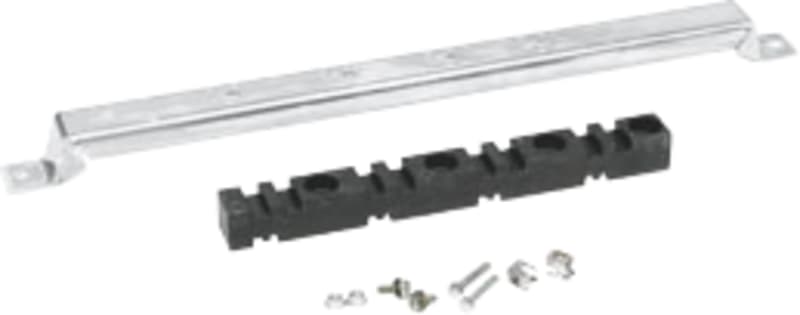

Schneider Electric Setting support 600 mm NSYAS600
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYAS600 Anchoring Inntakskinne L=600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAS600
- EAN / GTIN
- 3606480062865
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Support accessory
- Product or component type
- Bar support
- Anwendung
- Prisma application; Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Bottom
- Busbar position
- Vertical
- Range compatibility
- PanelSeT PanelSeT SF; Linergy Linergy LGYE; Linergy Linergy BS; Prisma Prisma POLAR WHITE
- Cubicle-device connection
- Linergy LGYE lateral busbar; Linergy BS lateral busbar
- Device composition
- fixing elements; 1 insulating bar support; 1 metal support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element - bottom frame of enclosure location
- Height
- 66 mm
- Width
- Fixing centers: 550 mm; Nominal: 600 mm
- Depth
- 39 mm
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 3200 A
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480062865
- SAP 1000088908
- Code 8581189
Product Documentation
