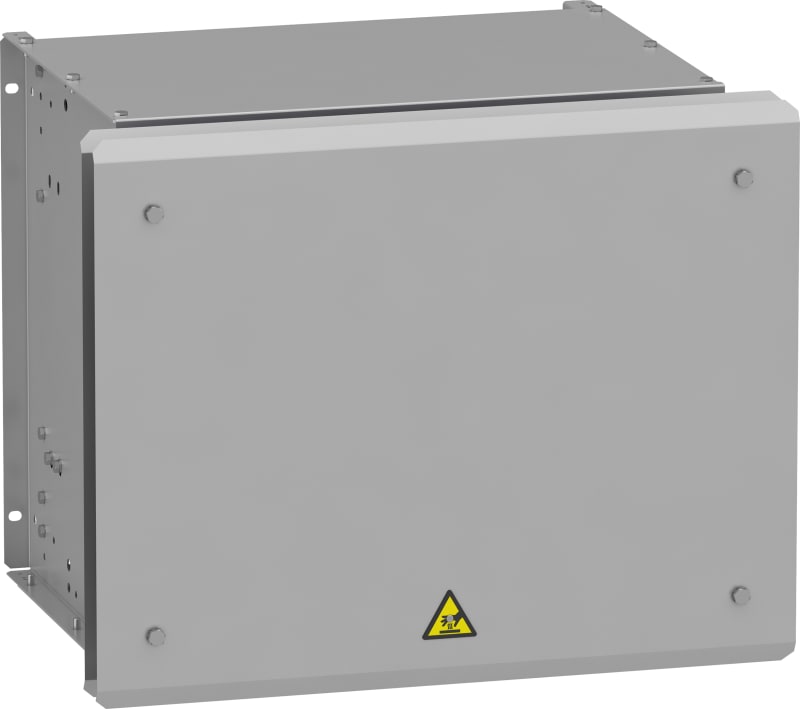

Schneider Electric braking resistor - 28 ohms - 5.1 kW - IP23 VW3A7752

Schneider Electric VW3A7752 Braking resistor 28 ohms 5,1kW IP23.

Manufacturer part number (MPN)

VW3A7752

EAN / GTIN

3606480802447

Sales unit

pcs

Power

5.1 kW

Resistance

28 Ω

Range compatibility

Altivar Process ATV900; Altivar Machine ATV340

Product or component type

Braking resistor

Ohmic value

28 Ohm

[Ue] rated operational voltage

24 V DC; 250 V AC

Product compatibility

Variable speed drive ATV930 wall mount 11 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 15 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 4 kW 200...240 V severe cycle; Variable speed drive ATV950 wall mount 11 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 15 kW 380...480 V severe cycle; Variable speed drive ATV340 7.5 kW 380...480 V severe cycle; Variable speed drive ATV340 11 kW 380...480 V severe cycle; Variable speed drive ATV930 15 kW 500...690 V severe cycle; Variable speed drive ATV930 18.5 kW 500...690 V severe cycle; Variable speed drive ATV930 20 hp 600 V severe cycle; Variable speed drive ATV930 25 hp 600 V severe cycle

Duty cycle

Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle

Average power available

5.1 kW at 50 °C

Electrical connection

terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch; M6 bar wire for drive

Protection type

Thermal protection via drive or temperature control switch at 120 °C

Width

540 mm

Height

485 mm

Depth

650 mm

Product weight

27 kg

IP degree of protection

IP23

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

0…50 °C

Country of origin

DE

Warranty (in months)

18

Type of accessory/spare part

Breaking resistance

Accessory

Yes

Spare part

No

HS Code

8533.29

• EAN 3606480802447
• SAP 1200020050
• Code 81392614
