WALL-Mount Cabinet WITH WINDOW. 8X6X2,5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D8625T Wall-mount cabinet With Window. 8X6X2,5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D8625T
- EAN / GTIN
- 3606480158957
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 800 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 250 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV; GL; cUL; UL; BV
- Product weight
- 22 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 29.500 cm
- Package 1 Width
- 61.000 cm
- Package 1 Length
- 81.500 cm
- Package 1 Weight
- 20.080 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 178.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 253.960 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 800 mm
- Depth
- 250 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158957
- SAP 1000089647
- Code 8914965
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Rear horizontal connection, MasterPact MTZ2 fixed/drawout, 3P, bottom connection, 2500A-3200A LV848149
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 50A C10N4TM050
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400HB1, 75KA/690VAC, 3 poles, MicroLogic 2.3M trip unit 320A C40V32M320
Schneider Electric
NG125L/D 40-3 Modular Power Switch
18853
Schneider Electric
Illuminated Push Button yellow with light ring LED
ZB5AW983
Schneider Electric
Schneider Electric Rear vertical connection, MasterPact MTZ2 fixed/drawout, 3P, bottom connection, 2500A-3200A LV848139
Schneider Electric

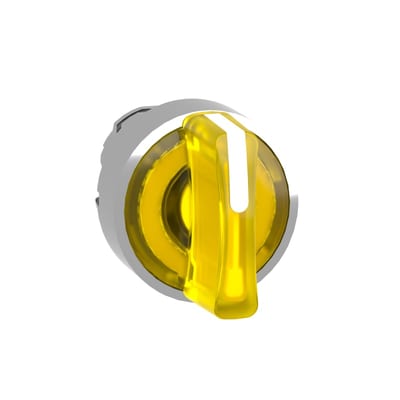

Selector switch with light 3POS.RET.H yellow
