Door complete for NSYPLM3025G
Pricing
Request a quote
We reply within 24 hours
Product Description

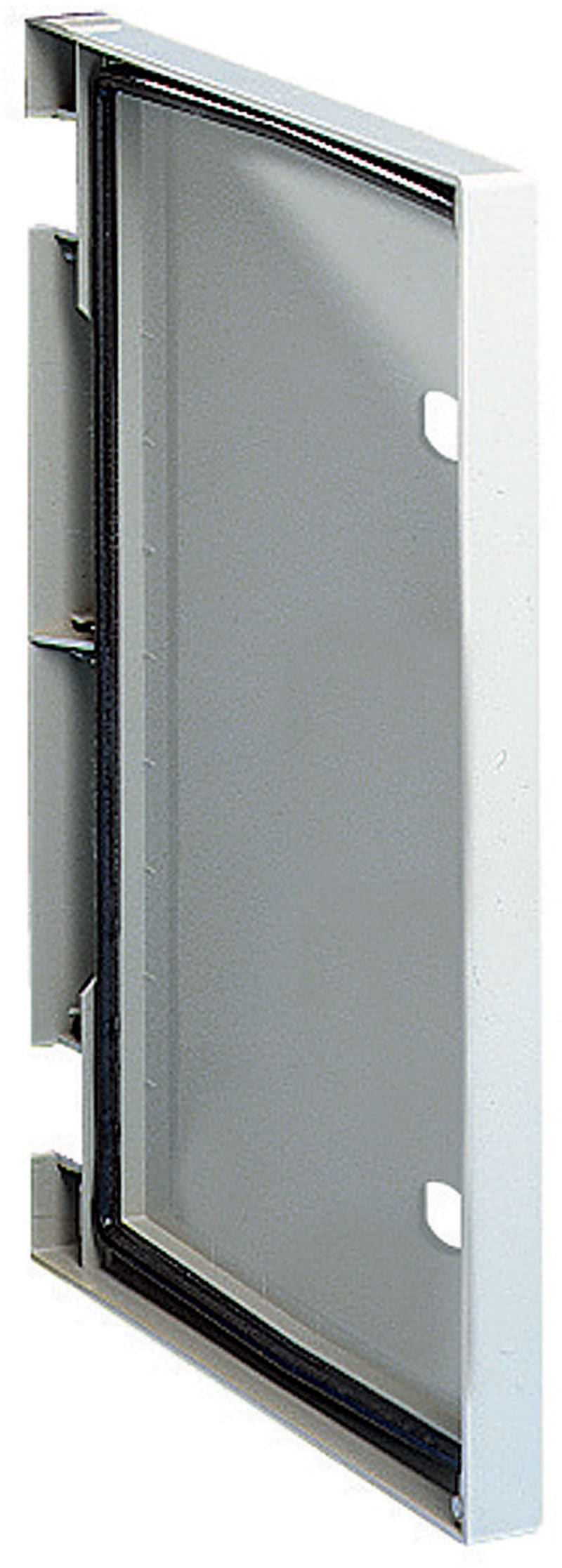

Schneider Electric NSYDPLM3025G Door, Thalassa PLM, for NSYPLM3025G, colour RAL7035.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDPLM3025G
- EAN / GTIN
- 3606485422282
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Front
- Range compatibility
- PanelSeT PLM
- Device composition
- 1 door
- Quantity per set
- Set of 1
- Material
- Door: polyester reinforced with fibreglass
- Colour
- Door: grey (RAL 7035)
- Door type
- Plain
- Door opening side
- Right (120 °); Left
- Maximum load
- 50 kg/m²
- Height
- 308 mm
- Width
- 255 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 32.000 cm
- Package 1 Weight
- 750.000 g
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 37.500 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 15.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 18.5 mm
- EMC-version
- No
- Degree of protection (IP)
- IP66
- Surface finishing
- Untreated
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606485422282
- SAP 1000752344
- Code 8486241
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric iPRD-DC 40R 800PV modular surge arrester - 2P - 800VDC - with remote transfert A9L40271
Schneider Electric
Schneider Electric miniature circuit breaker - C60H - 1 pole - 50 A - C curve A9N61518
Schneider Electric
Schneider Electric Interface plug-in relay, 10 A, 1 CO, clear cover, 24 V DC RXG15BD
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC60L, 3P, 10A, MA curve, 20KA (IEC/EN 60947-2) A9F90310
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL110V-POWER 230V(200hp)/460V(400hp)/575V(500hp) ATS22C59S6U
Schneider Electric
DIN-rail terminal 50mm² blue 2P
NSYTRV502BL
Schneider Electric
Schneider Electric Harmony Hub, Wireless to Modbus Serial Line Gateway, 24-240 V AC/DC
ZBRN2
Schneider Electric

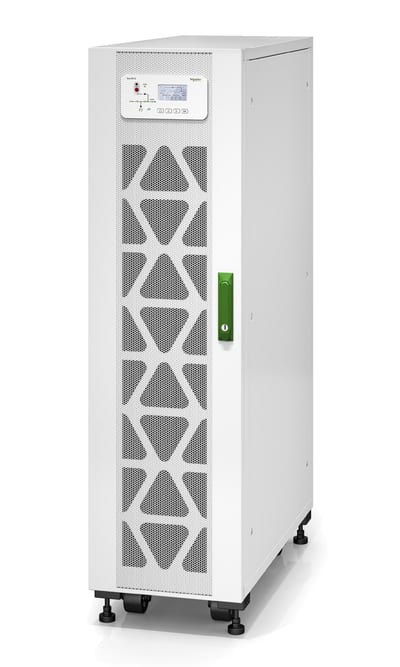

Schneider Electric Easy UPS 3S 10 kVA 400V 3:1 UPS, 2 internal 7AH modular battery strings, expandable to 3 E3SUPS10K3IB2
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYDPLM3025G?
- NSYDPLM3025G can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYDPLM3025G.
- What is the HS code for NSYDPLM3025G?
- The customs tariff (HS) code for NSYDPLM3025G is 8538.10.
- Who manufactures NSYDPLM3025G?
- NSYDPLM3025G is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYDPLM3025G?
- Yes — the NSYDPLM3025G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYDPLM3025G?
- The minimum order quantity is 1.
- Is NSYDPLM3025G available?
- Yes — NSYDPLM3025G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
