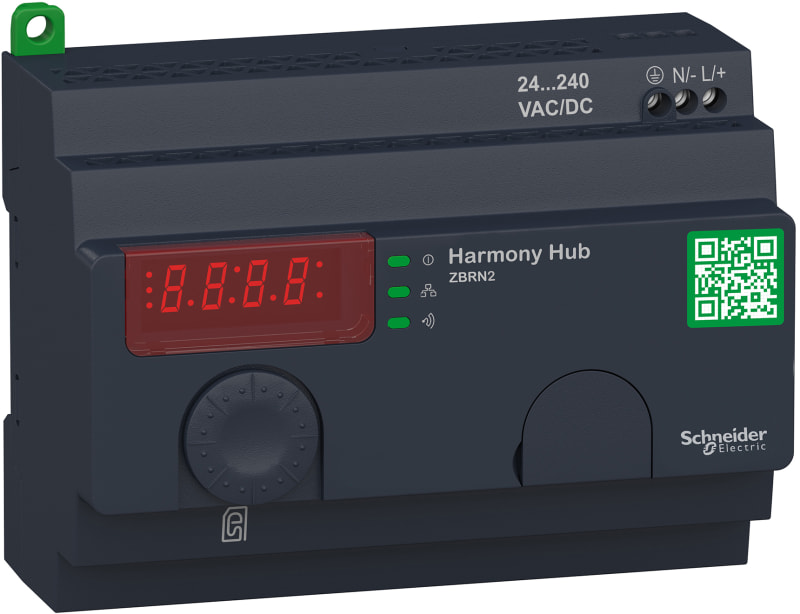

Schneider Electric Harmony Hub, Wireless to Modbus Serial Line Gateway, 24-240 V AC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZBRN2 Harmony Hub access point for up to 60 wireless devices with a serial Modbus RTU output, 24-240 V AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- ZBRN2
- EAN / GTIN
- 3606480528491
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony
- Product or component type
- Harmony Hub wireless/Serial Line gateway
- Device short name
- ZBRN2
- Product specific application
- Wireless Schneider Electric devices ecosystem
- Function of module
- Zigbee green power concentrator
- Communication port protocol
- Modbus client application
- Antenna type
- Integrated
- Transmission frequency
- 2405-2480 MHz
- Maximum radio communication distance
- 100 m in free field; 250 m if a relay antenna is located between the transmitter and Harmony Hub; 60 m if an external antenna is connected to Harmony Hub; 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure
- Radio response time
- < 30 ms
- Radio channels utilisation
- <= 60 devices
- [Us] rated supply voltage
- 24-240 V AC/DC 50/60 Hz - 10-10 %
- Immunity to microbreaks
- 10 ms
- Maximum power consumption in W
- 4 W AC/DC
- Breaking capacity
- 15 W
- Control circuit freque
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606480528491
- SAP 1000347652
- Code 8387506
