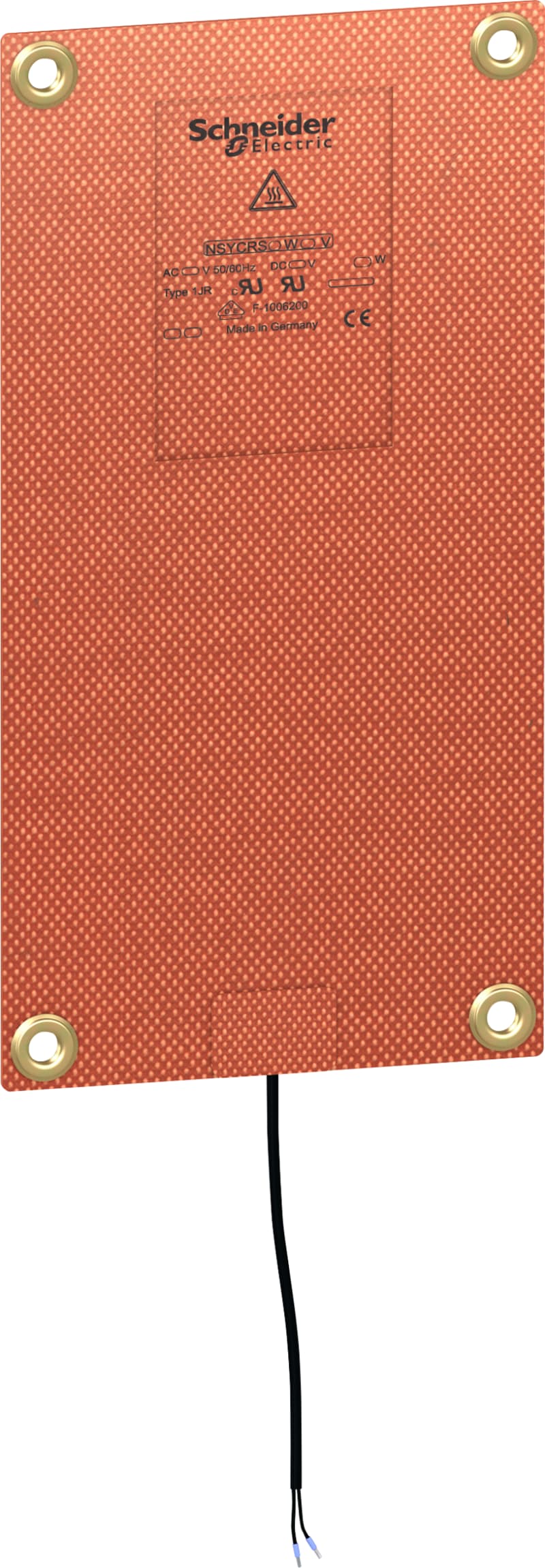

Schneider Electric Climasys Ultra thin resistance heater low starting current 20W 240V 130X250MM NSYCRS25W240V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCRS25W240V Ultratynn heater 25W 240V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCRS25W240V
- EAN / GTIN
- 3606480530142
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 240 V
- Power
- 25 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Ultra thin resistance heater
- Power range
- 25 W
- Input voltage
- 240 V AC 50/60 Hz
- Electrical connection
- Cable length: 2 m
- Operating position
- Vertical; Horizontal
- Ambient air temperature for operation
- -60…70 °C
- Temperature setting range
- -40…70 °C
- Material
- Silicone rubber
- Height
- External: 110 mm
- Width
- External: 230 mm
- Depth
- External : 1.6 mm
- Device composition
- 6 self-adhesive Velcro pads; 6 plastic spacers; 4 Telequick nuts; 4 clip-on nuts; fixing accessories
- Condition of use
- Heaters must be installed with a thermal controller; Air sealed enclosure; Electrical protection is needed
- fixing mode
- By 4 screws
- Mounting support
- Standard mounting plate; DIN rail; Adhesive Velcro; Telequick mounting plate
- Country of origin
- MX
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 25 W
- Continuous heating power at 10 °C
- 25 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480530142
- SAP 1000336122
- Code 81085222
Product Documentation
More from Schneider Electric
Schneider Electric
Passiva filter 122A 460V 60Hz (VW3A46150)
Schneider Electric
Schneider Conventional Heat Detector 6295 60°C IP67
FFS06406295
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 3P, 63A, A-SI type, instantaneous, 30MA, 400...415VAC A9V61363
Schneider Electric
NG125N/B 125-3 Modular Power Switch
18665
Schneider Electric
Schneider Electric spring fixing bracket, Canalis KBA, 25 A and 40 A, suspended by 3M of cable with lock, galvanized version KBA40ZFSU
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 32A, 230V AC 50/60Hz coil, snap-in terminals LC1D32AFL
Schneider Electric
Schneider Electric Harmony, Solid state relay, 20 A, DIN rail mount, DC switching, input 4…32 V DC, output 1…150 V DC SSD1D520BDC1
Schneider Electric
Schneider Electric PanelSeT SM vertical adaptation profiles - 1400 mm NSYSMVR14
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCRS25W240V?
- NSYCRS25W240V can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCRS25W240V.
- What is the HS code for NSYCRS25W240V?
- The customs tariff (HS) code for NSYCRS25W240V is 8516.80.
- Who manufactures NSYCRS25W240V?
- NSYCRS25W240V is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCRS25W240V?
- Yes — the NSYCRS25W240V datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCRS25W240V?
- The minimum order quantity is 1.
- Is NSYCRS25W240V available?
- Yes — NSYCRS25W240V is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
