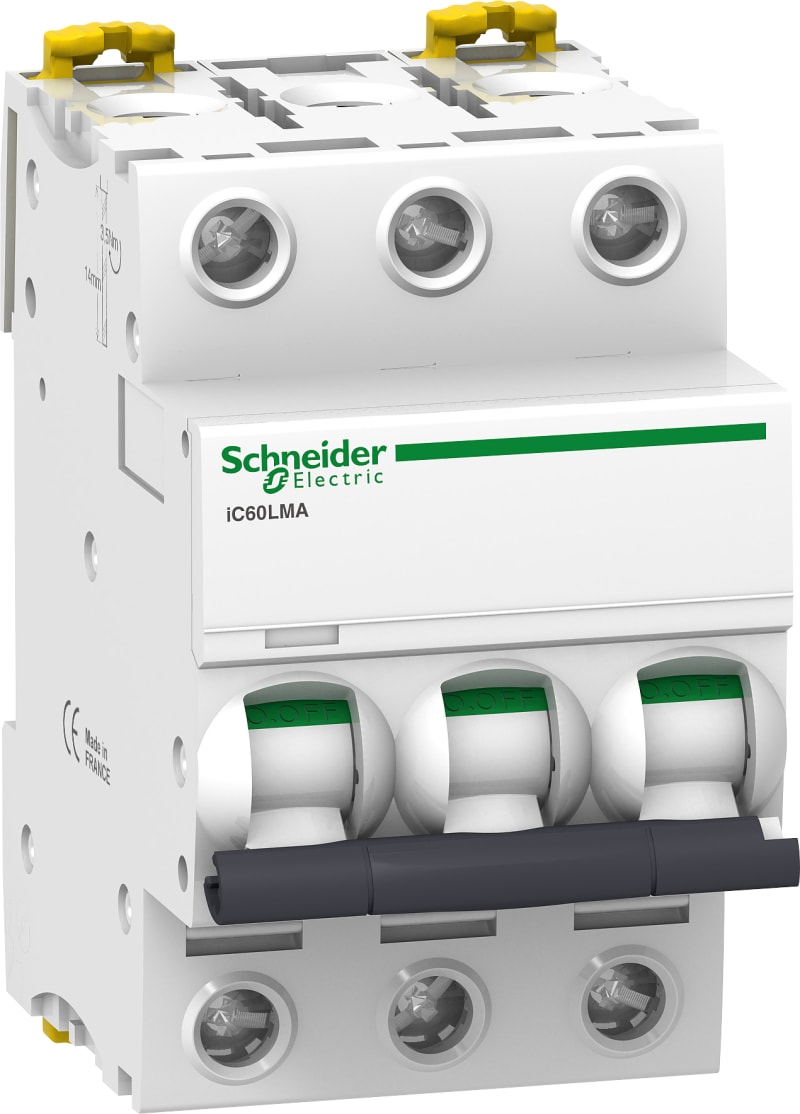

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC60L, 3P, 10A, MA curve, 20KA (IEC/EN 60947-2) A9F90310
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9F90310 — Acti9 iC60 MCB. Miniature circuit breaker per IEC 60898, DIN-rail modular. Miniature circuit breaker iC60HLMA 3P 10A MA.
Technical Specifications
- Manufacturer part number (MPN)
- A9F90310
- EAN / GTIN
- 3606480085987
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Rated current
- 10 A
- Number of poles
- 3P
- Range
- Acti9
- Product name
- Acti9 iC60
- Product or component type
- Miniature circuit-breaker
- Device short name
- iC60L
- Device application
- Motor
- Poles description
- 3P
- Number of protected poles
- 3
- [In] rated current
- 10 A
- Network type
- AC
- Trip unit technology
- Magnetic
- Curve code
- MA
- Utilisation category
- Category A conforming to EN/IEC 60947-2
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Standards
- EN/IEC 60947-2
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz
- Magnetic tripping limit
- 12 x In +/- 20 %
- Breaking capacity
- 40 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Ics] rated service breaking capacity
- 20 kA 50 % x Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10 kA 50 % x Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2; 7.5 kA 50 % x Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to EN/IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- Trip indicator
- mounting mode
- Clip-on; Removable comb busbar installed
- Mounting support
- 35 mm DIN rail
- Comb busbar and distribution block compatibility
- Top or bottom: YES
- Connection pitch
- 18 mm between phases
- 9 mm pitches
- 6
- Height
- 85 mm
- Width
- 54 mm
- Depth
- 78.5 mm
- Product weight
- 0.375 kg
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible with ferrule, copper; Single terminal (top or bottom) , for 1.0 cable(s) , flexible, copper or aluminium, with ring terminal and accessory
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2 N.m top or bottom
- Earth-leakage protection
- Separate block
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Overvoltage category
- IV
- Tropicalisation
- 2 conforming to IEC 60068-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -35…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480085987
- SAP 1000343446
- Code 8379320
Product Documentation
