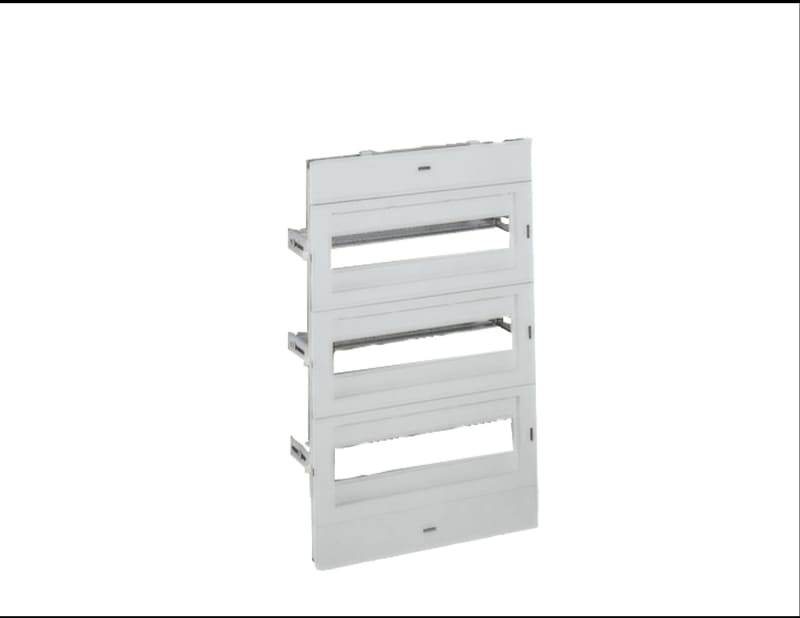

PLM84 Automatinsats 7035 84MOD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYDLA84G PLM84 Automatinsats 7035 84mod.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLA84G
- EAN / GTIN
- 3606480773860
- Sales unit
- pcs
- Modular width
- 84 modules
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Modular distribution application; Multi-purpose
- Product or component type
- Chassis
- Device short name
- DLA
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM
- Device composition
- 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 3 front panels with 35 mm DIN rail; 1 plain front panel with mounting plate
- Quantity per set
- Set of 1
- Material
- Front panel: self-extinguishing insulating; Chassis structure and rails: steel
- Colour
- Front panel: grey (RAL 7035)
- Fixing mode
- By fixing element - on front with supports location
- Adjustment
- In height from 40 to 85 mm for DIN rail
- Number of horizontal rows
- 4
- Total number of 18 mm modules
- 84
- Type of front plate
- Plain and cut-out plates
- Number of cut-out
- 3 cut-outs
- Height
- 780 mm
- Width
- 560 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 78.500 cm
- Package 1 Width
- 58.000 cm
- Package 1 Length
- 14.500 cm
- Package 1 Weight
- 8.588 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 16
- Package 2 Height
- 122.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 150.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- With mounting plate
- Yes
- With mounting rail
- Yes
- With cover
- Yes
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480773860
- SAP 1000752303
- Code 8486169
Product Documentation
More from Schneider Electric
Schneider Electric

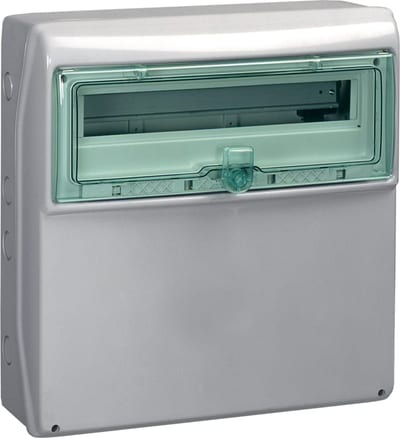

Kaedra 1X12MOD, HEL Outletfront (13192)
Schneider Electric

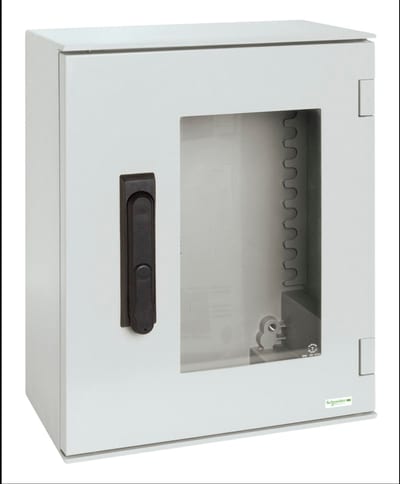

Schneider Electric wall-mounting encl. polyester monobloc IP66 647X436X250MM 3P.LOCK glazed door NSYPLM64TVG
Schneider Electric
RAIL 100A 3M 12 Outlet
KSA100ED43012
Schneider Electric

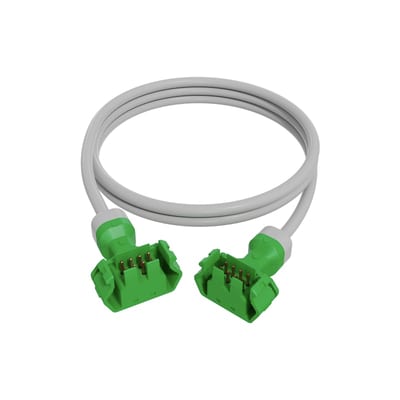

Schneider Electric Cable connector, SpaceLogic KNX, 1.5M, long, green MTN6941-0002
Schneider Electric

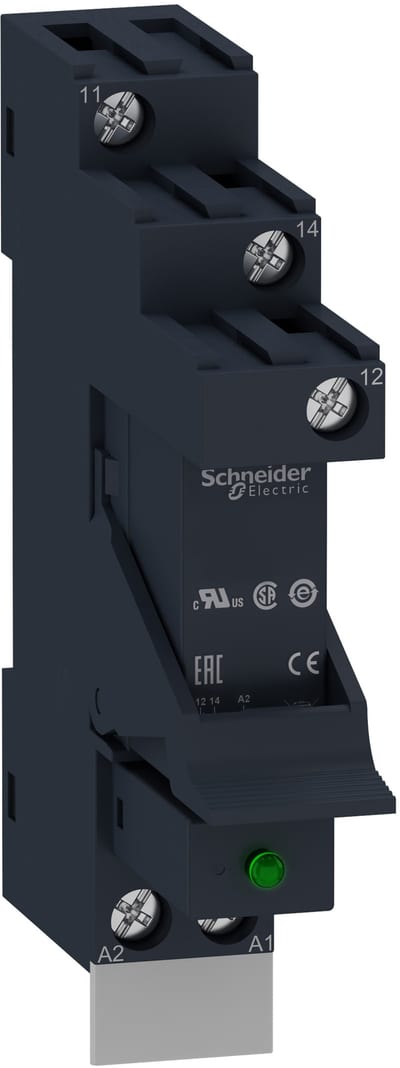

Schneider Electric Harmony, Interface plug-in relay pre-assembled, 12 A, 1 CO, with LED, with protection circuit, 24 V AC RSB1A120B7PV
Schneider Electric
Schneider Electric SpaceLogic KNX ARGUS Presence Detector Basic, 360 Degrees, Polar White
MTN630719
Schneider Electric

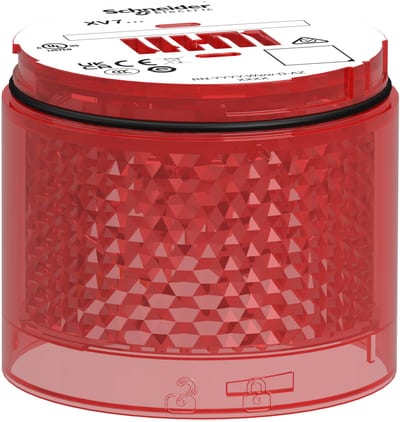

Light Unit with 2J flash LED in red
XVB7C64
Schneider Electric

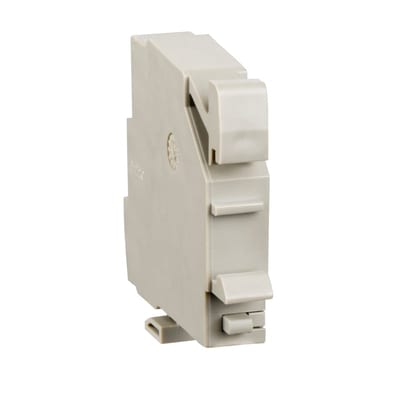

CE/CD/CT low-level MTZ withdrawable, spare
