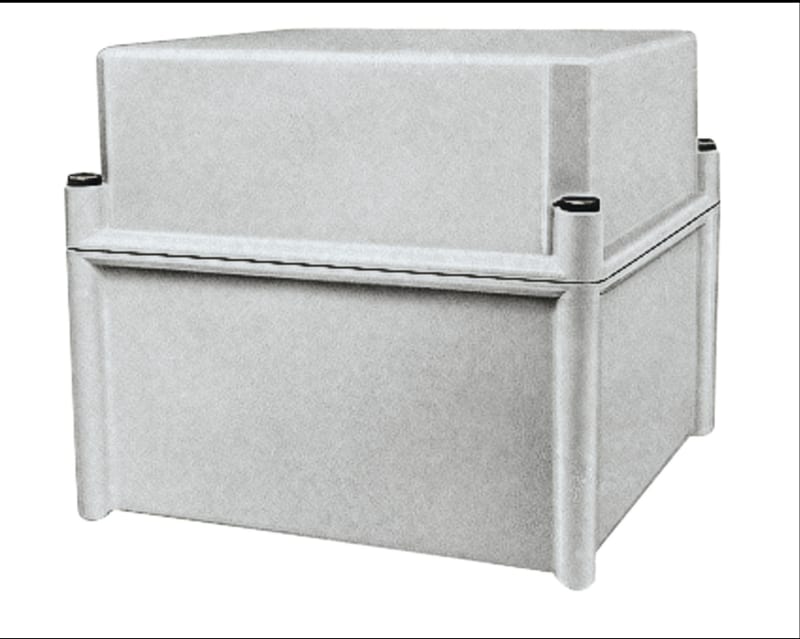

Schneider Electric PLS box, polyester rear, opaque PC cover IP65 36X54X18CM NSYPLSC3654G

Schneider Electric NSYPLSC3654G sealed PC PLS 7035 box36x54x18.

Manufacturer part number (MPN)

NSYPLSC3654G EAN / GTIN: 3606480777172 Sales unit: pcs Range: PanelSeT Product name: PanelSeT PLS Device short name: PLS Enclosure type: Multi-purpose Category: Insulating modular box Nominal height: 360 mm Nominal width: 540 mm Nominal depth: 180 mm Enclosure mounting: Wall mounted Device composition: 1 cover: on enclosure; 1 rear part: on enclosure; locking screws Body type: One piece moulded Type of front cover: Low plain cover Lock type: Slot screw Removable parts: Cover locking screw material: Cover: polycarbonate; Rear: polyester reinforced with fibreglass Colour: Body: grey (RAL 7035) Standards: NEMA classification 13; IEC 62208; NEMA 4X Product certifications: UL Electrical insulation class: Class II IP degree of protection: IP66 conforming to IEC 60529 IK degree of protection: IK09 conforming to IEC 62262 Fire resistance: 960 °C conforming to IEC 62208 Ambient air temperature for storage: -30…70 °C Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 19.000 cm Package 1 Width: 37.500 cm Package 1 Length: 55.500 cm Package 1 Weight: 4.080 kg Unit Type of Package 2: PAM Number of Units in Package 2: 45 Package 2 Height: 179.500 cm Package 2 Width: 100.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 197.000 kg Country of origin: ES Warranty (in months): 18 Width: 540 mm Height: 360 mm Depth: 180 mm RAL-number: 7035 With mounting plate: No Impact strength: IK09 Degree of protection (IP): IP66

HS Code

9403.70

• EAN 3606480777172
• SAP 1000752690
• Code 8486670
