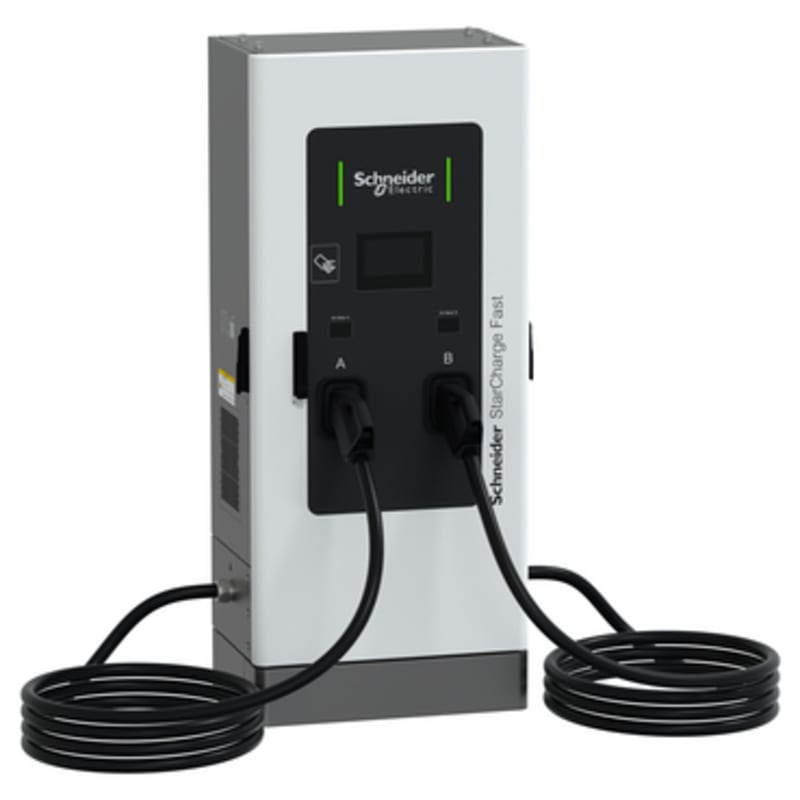

Schneider StarCharge Fast 60 EV Charger 60 kW, 2xCCS2, 7.5 m Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Fast charging station, Schneider StarCharge Fast 60, 60 kW, 2xCCS2, 7.5 m cable reach. Delivers up to 60 kW DC via two SAE CCS Combo 2 connectors for simultaneous or sequential vehicle charging. Suitable for indoor and outdoor installation on floor stand, with RFID authentication and integrated energy meter per output.
Technical Specifications
- Manufacturer part number (MPN)
- EVD2S60TBBC7
- EAN / GTIN
- 3606487675440
- Sales unit
- pcs
- Power
- 60 kW
- Range
- Schneider StarCharge Fast 60
- Product name
- Schneider StarCharge Fast 60
- Product or component type
- Fast charging station
- Type of installation
- Indoor/outdoor
- Poles description
- 3P + N + E
- Range compatibility
- EVlink EVlink Field Services; EVlink EVlink Load Management System
- Device application
- Electrical Vehicle charger
- Mounting location
- Floor stand
- Earthing system
- TN-S; TN-C-S; TT; Compatible IT with additional isolation transformer on the power supply
- [Us] rated supply voltage
- 380...415 V AC at 50...60 Hz, 3 phases + neutral
- Input current
- 95…105 A
- Nominal output power
- SAE CCS Combo 2: 60 kW at 0…200 A150...1000 V DC
- Output cable range in m
- Both side: 2 charging cable of 7.5 m
- Number of outputs
- 2
- Connector type
- SAE CCS Combo 2
- Provided equipment
- energy meter per output
- Accuracy class of energy meter
- Class 1
- Accuracy class error of energy meter
- 1 % of full scale
- Cable management system
- Without
- Protection type
- Short-circuit protection on output; Overload protection; Ground fault protection; Temperature rise protection
- Access control system
- RFID authentication card MIFARE Classic conforming to ISO/IEC 14443 A and B; RFID authentication card MIFARE Ultralight; RFID authentication card MIFARE DESFire EV1; RFID authentication card MIFARE DESFire EV2; RFID authentication card MIFARE Plus; RFID authentication card NFC; Autocharge; Plug & charge conforming to ISO 15118; Free access; QR code/application
- Contactless payment terminal
- Without
- Display type
- LCD touch screen : 7 inch LED
- Main user language (constantly evolving)
- English; Bulgarian; Czech; Danish; Dutch; Estonian; Finnish; French; German; Greek; Hebrew; Hungarian; Indonesian; Italian; Norwegian; Portuguese; Spanish; Swedish; Multi-language
- Control button type
- Charge interruption button
- Material
- Enclosure: stainless steel 430
- Colour
- Front door: signal white (RAL 9003); Front door: black (RAL 9005); Body: dark grey silver
- Efficiency
- 97 %
- Power factor
- 0.99
- Ambient air temperature for operation
- -30…50 °C (with derating above 50 °C)
- Height
- 1650 mm
- Width
- 700 mm
- Depth
- 470 mm
- Net weight
- 244 kg
- Services
- Commercial service plan; Commissioning service; Warranty extension up to 5 years; Repair service
- Ethernet service
- Web browser
- Communication port protocol
- OCPP 1.6; Modbus TCP; Ethernet TCP/IP
- Communication network type
- 4G; WLAN; Ethernet TCP/IP; Wi-Fi
- Electromagnetic compatibility
- Immunity for industrial environments: ; Emission standard for industrial environments:
- IP degree of protection
- IP55
- IK degree of protection
- IK10; Screen: IK08
- Ambient air temperature for storage
- -40…70 °C
- Operating altitude
- 0...2000 m
- Relative humidity
- 5…95 %, without condensation
- Standards
- IEC 61851-1:ed. 3; IEC 61851-23:ed. 1; IEC 62196-1; IEC 62196-3; EN/IEC 61000-6-2:2005; EN/IEC 61000-6-4:class A; ISO 15118-2; DIN 70121; VDV 261
- Number of Units in Package 1
- 1
- Warranty (in months)
- 24
- Country of origin
- China
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606487675440
- SAP 1200902232
- Code 84153503
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Direct rotary handle, ComPacT NSX400/630, red handle/yellow front, IP40 LV432599T
Schneider Electric
Schneider Electric TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 230 V AC coil LC2D95P7
Schneider Electric
Schneider Electric Easy Rack Side Panel 42U/1200MM Deep Split Side Panels Black Qty 2 ER7SIDE4212
Schneider Electric
Interpact INS160, 4P (28929)
Schneider Electric
Schneider Electric Wander socket outlet, Mureva PK, Fast connection, 32A, 3P+E, 400V, IP67 PKY32M734
Schneider Electric
Schneider Electric wall-mounting encl. polyester monobloc IP66 747X536X300MM 3P.LOCK glazed door NSYPLM75TVG
Schneider Electric

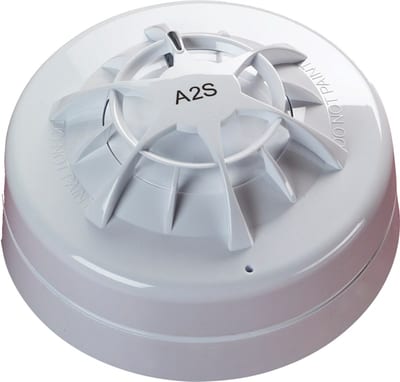

Heat detector EDC-50/A2S
FFS06724652
Schneider Electric

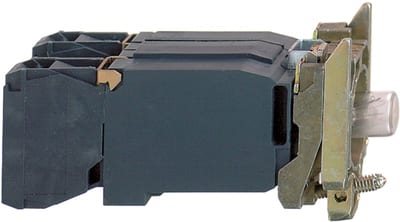

Schneider Electric light block with body/fixing collar with BA9S incandesc. bulb 220...240V 1NO+1NC ZB4BW045
